Toyota Hilux 4.0V6 2016-2025 DeGraaf Exhaust System

Toyota Hilux 4.0 V6 2016–2025 DeGraaf Performance Exhaust System

Upgrade your Toyota Hilux 4.0 V6 Revo with a DeGraaf Performance Exhaust System engineered specifically for the 4.0 V6 platform. Designed to optimise exhaust flow throughout the rev range, this system can improve throttle response, engine breathing and overall driving performance while delivering the distinctive DeGraaf V6 exhaust sound.

The DeGraaf Hilux 4.0 V6 system is designed around the vehicle’s specific exhaust layout, combining performance branches, stainless-steel front pipes and a larger 63mm stainless-steel exhaust system from the intermediate section through to the tail pipe.

Key Features

• Designed specifically for the Toyota Hilux 4.0 V6 Revo
• Suitable for 2016–2025 applications
• DeGraaf Performance Exhaust system
• Performance-engineered branches
• 57mm mild-steel branches – left and right
• 57mm stainless-steel front pipes – left and right
• 63mm stainless-steel intermediate
• 63mm stainless-steel rear
• 63mm stainless-steel tail pipe
• Improved exhaust gas flow
• Sharper throttle response
• Potential power and torque improvements
• Potential fuel-efficiency improvements
• Lower exhaust gas temperatures
• Distinctive DeGraaf V6 exhaust note
• Suitable for touring, towing and off-road applications

The current DeGraaf specification confirms this exact component configuration and lists the system under SKU 10-1-5-1-1.

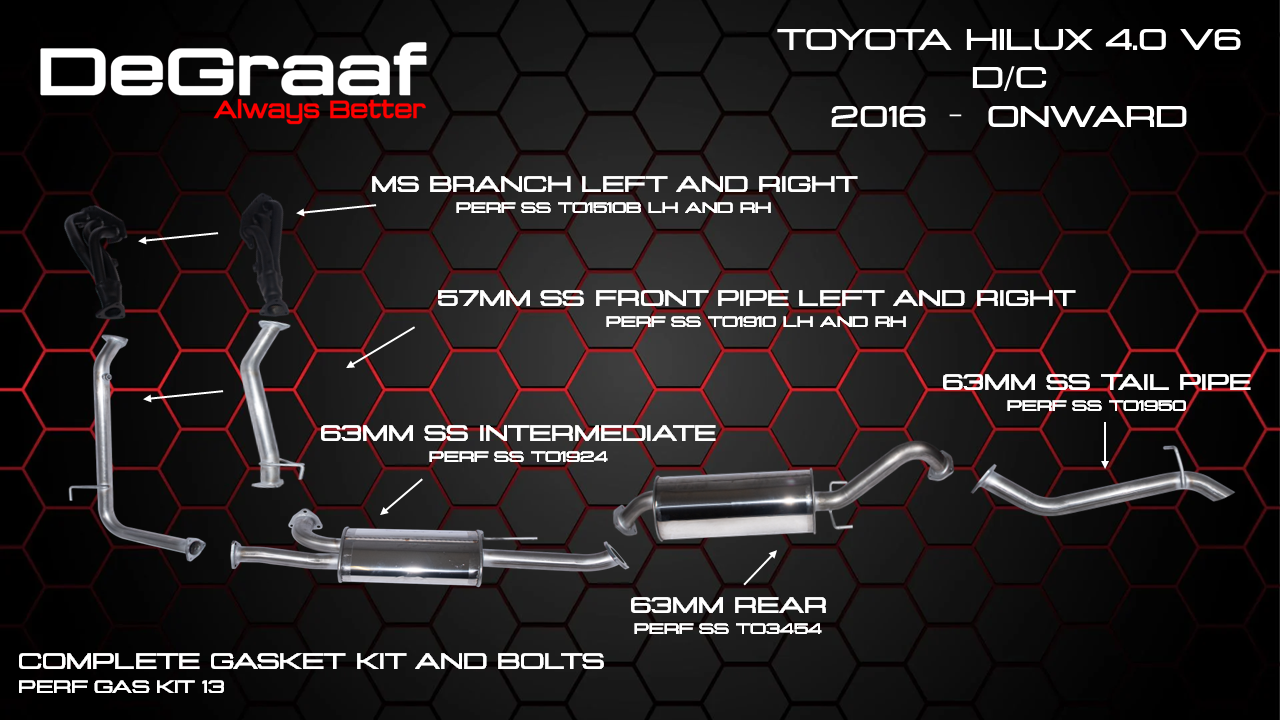

System Includes

• 57mm mild-steel performance branches – left and right
• 57mm stainless-steel front pipes – left and right
• 63mm stainless-steel intermediate
• 63mm stainless-steel rear
• 63mm stainless-steel tail pipe

Performance-Focused Exhaust Flow

The DeGraaf system is designed to optimise exhaust efficiency throughout the rev range.

Potential benefits include:

• Improved exhaust gas flow
• Improved throttle response
• Increased power and torque potential
• Improved engine breathing
• Potential fuel-efficiency improvements
• Reduced exhaust gas temperatures
• Improved performance when towing or carrying additional load

Actual results will vary depending on the condition and specification of the vehicle, fuel quality, ECU calibration and any other modifications fitted to the Hilux.

DeGraaf specifically highlights power, torque, fuel efficiency, throttle response and lower exhaust temperatures as potential benefits of its Hilux 4.0 V6 system.

DeGraaf V6 Sound

One of the biggest advantages of upgrading the Hilux 4.0 V6 is the change in exhaust character.

The DeGraaf system is designed to give the V6 a deeper, stronger and more purposeful exhaust note while the Silent But Strong configuration maintains a more refined sound suitable for everyday use.

It is an excellent option for Hilux owners who want to hear more of the V6 without going to an excessively loud setup.

Ideal for Touring, Towing & Off-Road

The Hilux 4.0 V6 is often used for more than daily driving. A performance exhaust can complement a vehicle equipped for:

• Overlanding
• Long-distance touring
• Camping
• Off-road driving
• Towing
• Heavy loads
• Adventure travel
• Performance modifications

Lower exhaust temperatures can also be beneficial when the vehicle is working hard under towing or heavy-load conditions.

The current DeGraaf listing identifies the application as Hilux 4.0 V6 2016 onward, while HJM’s listing covers the Hilux 2016+ 4.0 V6 Double Cab application.

South African Specification Vehicles Only.

This exhaust system is designed specifically for the Toyota Hilux 4.0 V6 Revo platform. Exact fitment should be confirmed against the vehicle before ordering. Please note: The DeGraaf specification confirms the 2016-onward 4.0 V6 application. The product should not be assumed to fit earlier Hilux 4.0 V6 models, which use a different DeGraaf system configuration.

If your Hilux already has an aftermarket exhaust, performance branches, catalytic-converter modifications, long-range fuel tank, auxiliary fuel tank or other underbody accessories, please advise us before ordering.

If your vehicle already has an aftermarket exhaust system, please specify this in the order notes when requesting a quotation or placing your order.

Additional clearance and compatibility checks may be required where aftermarket components have been installed.

Performance results vary between vehicles. Factors including vehicle condition, modifications, ECU calibration, environmental conditions and testing equipment can influence measured power, torque and fuel-consumption results.

DeGraaf also cautions that dynamometer results are subject to variables such as environmental conditions, vehicle modifications and calibration differences.

No specific kW, Nm or fuel-consumption increase should therefore be guaranteed without testing the individual vehicle.

Image for illustrative purposes only. Vehicle shown is for display purposes and may not represent the exact product, vehicle specification or final fitment. Actual product appearance and fitment may vary.
