Toyota Hilux GD6 2016-2025 Double Cab Bushtech Drawer System

Toyota Hilux GD6 2016–2025 Double Cab Bushtech Drawer System

Smart Storage for Your Hilux GD6

Maximise the load bay of your Toyota Hilux GD6 2016–2025 Double Cab with the Bushtech Drawer System — a modular storage solution designed for 4×4 touring, overlanding, camping, hunting, farming, work and everyday load management.

Built using lightweight aluminium drawers with an automotive steel outer case, the Bushtech system combines practical storage, easy access and durability for demanding South African conditions.

The system is available in Equal 50/50 or Unequal 60/40 configurations, with the larger drawer available on the left or right side depending on the selected setup.

Key Features

• Genuine Bushtech Drawer System
• Toyota Hilux GD6 Double Cab 2016–2025 application
• Equal 50/50 drawer configuration
• Unequal 60/40 drawer configuration
• Large drawer can be positioned left or right
• Lightweight aluminium drawers
• Automotive steel outer case
• Fully carpeted drawers
• Heavy-duty sealed roller bearings
• Slam-shut function
• Lockout function
• Hard-wearing automotive carpet deck
• Removable side-wing panels
• Additional storage around the wheel arches
• Water-tank provision
• Fridge-compatible
• Optional Energy Chain
• Optional Fridge Tie-Down Plate Set
• Optional Fridge Cage
• Made in South Africa

Equal 50/50 Drawer Configuration

The Equal 50/50 configuration provides two similarly sized drawers, making it a practical choice when you want balanced storage across the Hilux load bay.

This configuration is well suited to carrying:

• Recovery equipment
• Camping equipment
• Tools
• Cooking equipment
• Spare parts
• Outdoor equipment
• General touring gear
• Work equipment

The equal configuration provides two large, independently accessible storage areas while maintaining a practical flat deck above the drawers.

Unequal 60/40 Drawer Configuration

The Unequal 60/40 configuration provides one larger drawer and one smaller drawer.

Bushtech specifically notes that the unequal configuration is normally used where a fridge larger than 60L is required. The larger drawer can be positioned on the left or right, depending on the selected application.

This makes the 60/40 configuration particularly useful for touring and overland builds where one side needs to accommodate a larger fridge or bulkier equipment.

Choose Your Large Drawer Side

The large drawer can be configured:

• Left Hand Side
• Right Hand Side

The preferred side should be specified when requesting a quotation.

Fridge-Compatible Drawer System

One of the major advantages of the Bushtech system is that a suitable 12V fridge can be installed directly inside the drawer, reducing the need for a separate heavy fridge slide.

Bushtech states that selected configurations can accommodate fridges of up to 90L, depending on the fridge brand and dimensions. The drawer incorporates spacing and slots intended to allow ventilation around the fridge.

The fridge drawer can also be configured with:

• Energy Chain for managing the fridge power cable
• Fridge Tie-Down Plate Set
• Fridge Cage
• Other compatible Bushtech accessories

Important – Fridge Information

When requesting a quotation, please specify in the Comment Section:

• Fridge brand
• Fridge model
• Fridge dimensions – Length × Width × Height
• Preferred fridge position

This allows the correct drawer configuration and fridge accessories to be confirmed.

Fridge Cage – Optional Extra

A Bushtech Fridge Cage is available as an optional accessory for compatible drawer systems.

The cage helps prevent loose equipment from falling into the fridge cavity when the drawer is open, while its open design allows airflow around the fridge. It also provides an additional packing level for suitable lightweight equipment.

Fridge Cage sold separately.

Fully Carpeted Interior

The Bushtech drawers are fully carpeted to help protect stored equipment while reducing rattling and noise when travelling over corrugated roads and rough terrain.

The deck is also covered with hard-wearing automotive carpet, providing a practical surface for camping equipment, storage boxes and other gear.

Heavy-Duty Sealed Bearings

The drawers run on heavy-duty sealed roller bearings, providing smooth operation while helping protect the drawer mechanism from dust and dirt.

The system also incorporates:

• Lockout function
• Slam-shut function
• Reliable drawer operation
• Secure access on uneven terrain

The lockout function helps keep an extended drawer open when the vehicle is parked or positioned on uneven ground.

Removable Side-Wing Panels

The Bushtech Drawer System includes removable side-wing panels that provide additional usable storage space around the wheel wells.

This makes better use of the available load-bin space without sacrificing the main drawer capacity.

Water-Tank Provision

The Bushtech drawer system incorporates provision for a water tank, allowing the drawer configuration to be integrated into a wider touring or overlanding setup.

Water tanks and other accessories are subject to the selected configuration and are sold separately unless specifically included in the quotation.

The Bushtech Double Cab Drawer System uses a combination of:

Drawers: Lightweight aluminium
Outer Case: Automotive steel
Drawer Interior: Fully carpeted
Deck: Hard-wearing automotive carpet
Drawer Bearings: Heavy-duty sealed roller bearings
Side Wings: Removable
Manufacturing: Made in South Africa

This construction provides a practical balance between strength, durability and weight.

Product Dimensions

Standard Width System

Outer Drawer Case:

1300 mm L × 1090 mm W × 320 mm H

Equal 50/50 Drawers:

1260 mm L × 470 mm W × 240 mm H per drawer

Unequal 60/40 Configuration:

Large Drawer:
1260 mm L × 540 mm W × 240 mm H

Small Drawer:
1260 mm L × 410 mm W × 240 mm H

Narrow Width System

Outer Drawer Case:

1300 mm L × 1020 mm W × 320 mm H

Equal Drawers:

1260 mm L × 440 mm W × 240 mm H per drawer

Unequal Configuration:

Large Drawer:
1260 mm L × 540 mm W × 240 mm H

Small Drawer:
1260 mm L × 380 mm W × 240 mm H

Outer Drawer Case:

1300 mm L × 1020 mm W × 320 mm H

Equal Drawers:

1260 mm L × 440 mm W × 240 mm H per drawer

Approximate System Weight: 68 kg

Specifications supplied by Bushtech. Correct width system must be confirmed for the specific Hilux application before ordering.

Ideal For

The Toyota Hilux GD6 Bushtech Drawer System is suited to:

• 4×4 Touring
• Overlanding
• Camping
• Hunting
• Farming
• Game Farm Travel
• Safari
• Lodge Operations
• Gravel Roads
• Remote-Area Travel
• Expedition Builds
• Work & Utility
• Fleet Vehicles
• Recovery Equipment
• Long-Distance Travel
• Everyday Load Management

Built for South African 4×4 Use

The Bushtech drawer system is designed for both on-road and off-road touring, providing organised storage while keeping equipment easily accessible.

It works particularly well as part of a complete Hilux touring build with:

• Canopy
• Fridge
• Fridge Cage
• Energy Chain
• Water Tank
• Roof Rack
• Rooftop Tent
• Recovery Equipment
• 4×4 Suspension
• Underbody Protection

Bushtech identifies its drawer systems as being designed for on- and off-road touring and manufactured in South Africa.

Important Fitment Information

HJM currently lists the Bushtech Double Cab Drawer System for the following Toyota Hilux GD6 applications:

• Hilux GD6 2016–2017
• Hilux GD6 Dakar / Rocco / Legend 50 2018–2020
• Hilux GD6 Legend 2021–2025
• Hilux GD6 Raider 2021–2023
• Hilux GD6 Raider 2024–2025

The current HJM catalogue also identifies the product as a Double Cab application.

Please provide:

• Exact Hilux year
• Exact derivative
• Double Cab confirmation
• Preferred 50/50 or 60/40 configuration
• Large drawer side – left or right
• Fridge brand and model, if applicable
• Existing load-bin accessories

Important – Existing Load-Bin Accessories

If your vehicle already has a canopy, roller shutter, tonneau cover, sports bar, roll bar, load-bin liner, fridge slide, flooring, existing drawers or other aftermarket load-bin equipment fitted, please specify this in the order notes when requesting a quotation or placing your order.

Existing equipment may affect available space, mounting points, clearance and the final configuration.

Important – Fridge Configuration

If a fridge is going inside the drawer, do not order based only on the fridge litre capacity.

Different fridge brands and models have different external dimensions.

Please provide the fridge brand, model and exact Length × Width × Height in the Comment Section when requesting a quotation.

This allows the correct drawer configuration and accessories to be confirmed.

Important Load & Payload Notice

The drawer system’s dimensions and approximately 68 kg system weight must be considered when calculating the vehicle’s available payload.

The weight of the:

• Drawer system
• Fridge
• Fridge accessories
• Water tank
• Stored equipment
• Canopy
• Roof rack
• Rooftop tent
• Recovery equipment
• Passengers
• Other accessories

must remain within the Toyota Hilux’s permitted payload and axle-load limits.

Drawer-system capacity must not be confused with the vehicle’s payload capacity.

Supply & Fit HJM Offroad

Available for Supply & Fit through HJM Offroad Johannesburg or Cape Town, South Africa.

HJM can assist with the complete Hilux touring and overland setup, including the drawer system, fridge configuration and supporting 4×4 accessories.

South African Specification Vehicles Only.

Please provide the exact vehicle year, derivative, cab configuration and existing load-bin accessories when requesting a quotation.

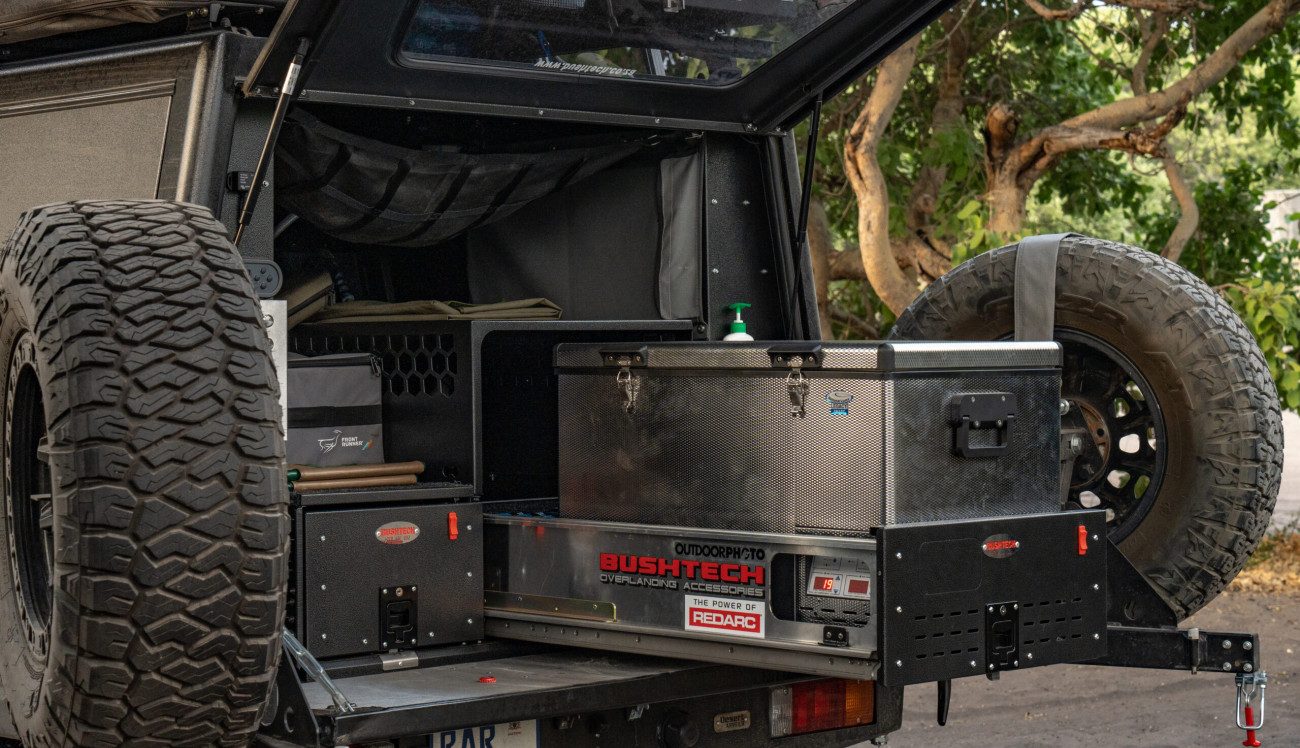

Image for illustrative purposes only. Vehicle shown is for display purposes and may not represent the exact product, vehicle specification or final fitment. Actual product appearance and fitment may vary.
