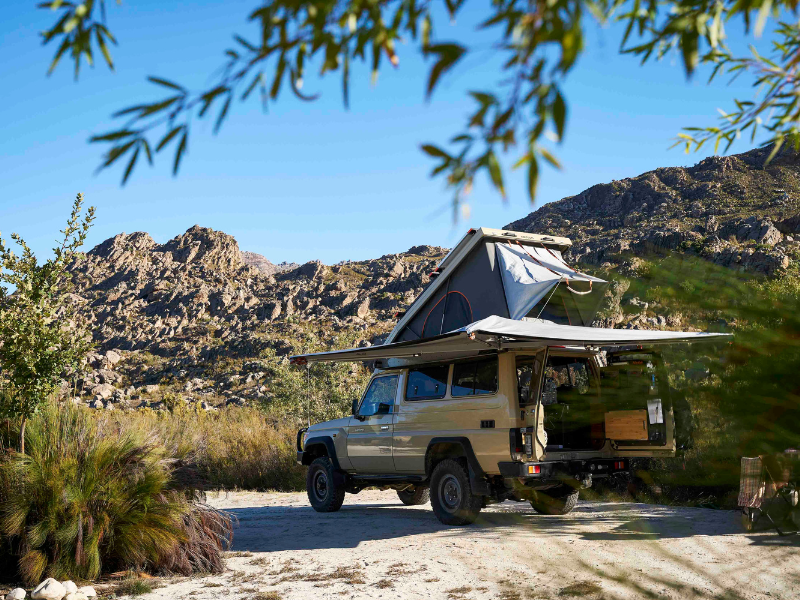

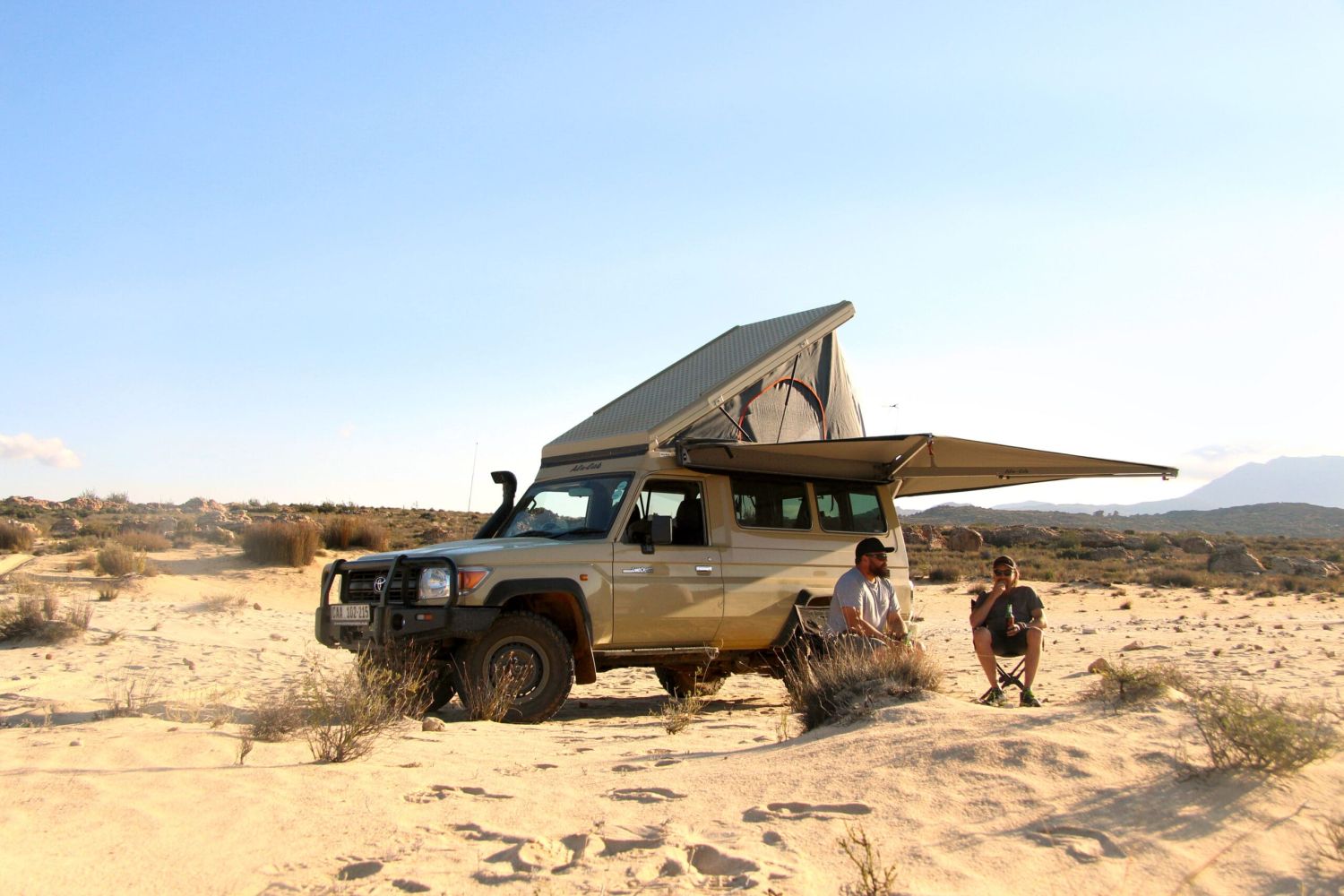

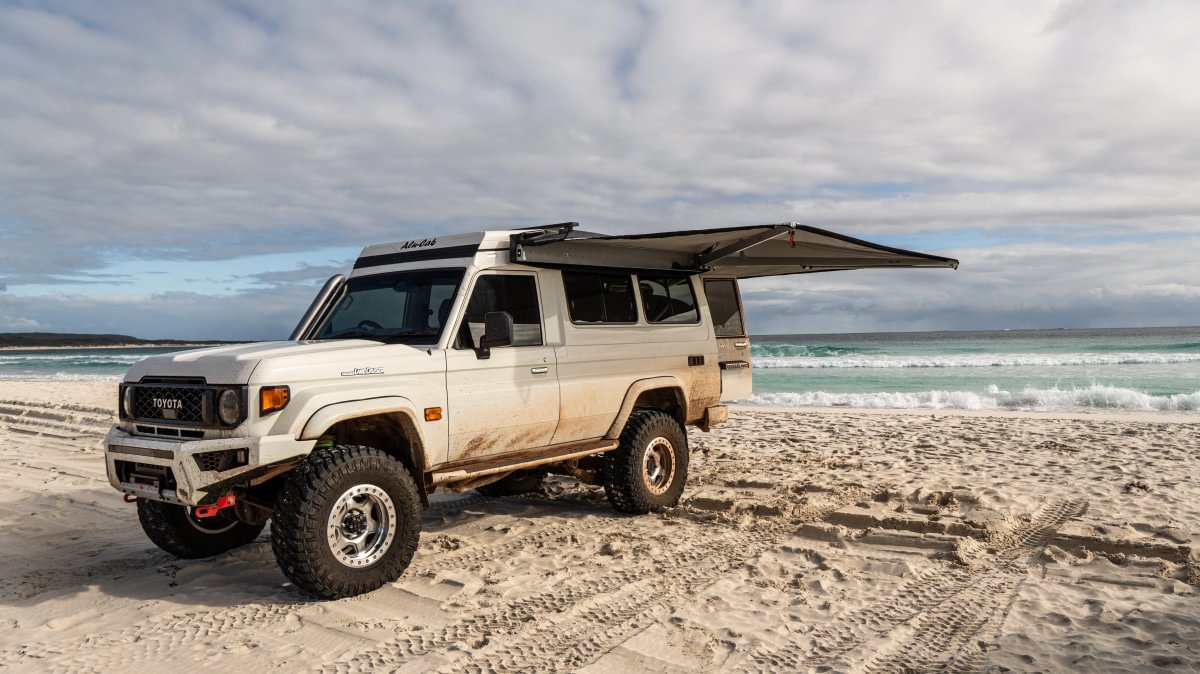

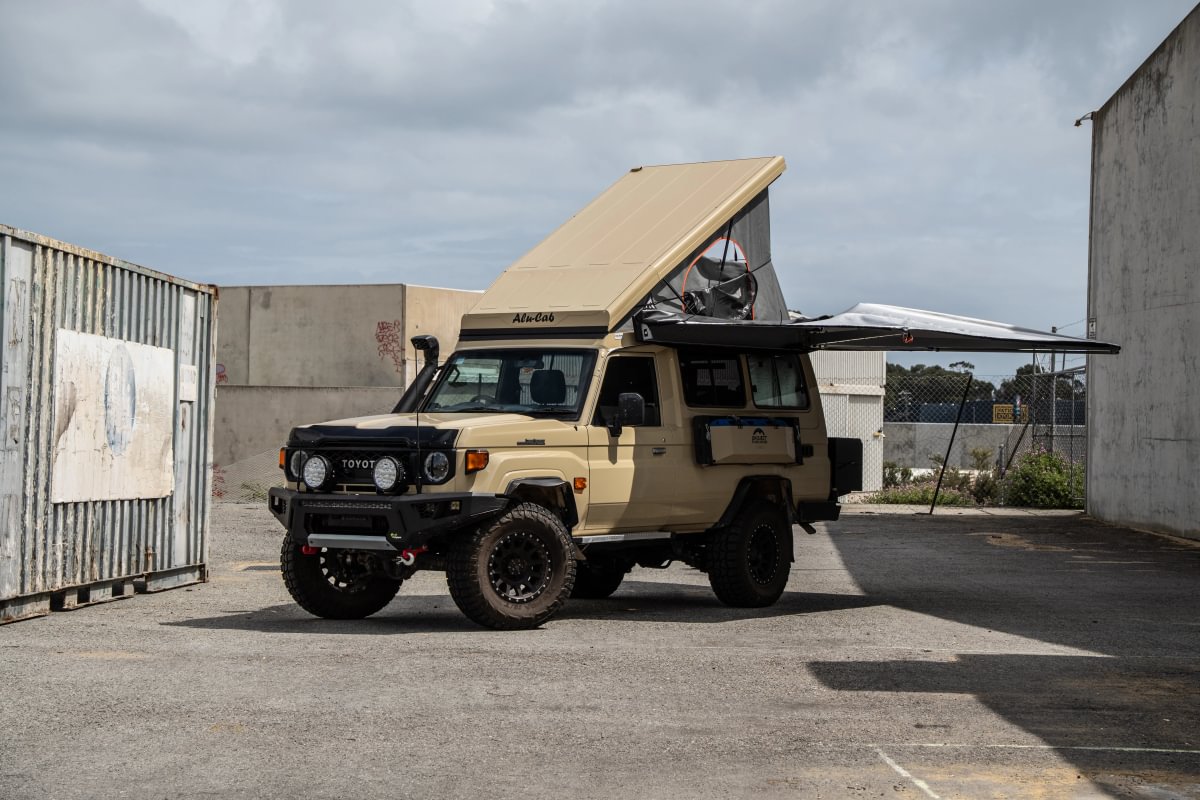

Transform your Toyota Land Cruiser 78 Series Troopy into a fully integrated camper with the **Alu-Cab Hercules Roof Conversion**. Designed for extended touring, overlanding and remote adventures, this premium roof conversion creates interior standing room and a full-length sleeping area for two while keeping your bedding inside when the roof is closed.

Unlike a conventional rooftop tent, the Hercules becomes part of your Land Cruiser. Its aerodynamic aluminium roof, double-layer waterproof canvas and integrated sleeping platform make it easier to transition from travelling to camping without packing away your bedding every day.

Whether you’re planning cross-border expeditions, exploring remote destinations or spending extended periods off-grid, the Hercules gives your Troopy a practical combination of living space, sleeping comfort and roof-mounted carrying capability.

Available on order through HJM Offroad, with enquiries for supply and fitment.

Key Features

– **Integrated camper conversion:** Creates standing room inside the vehicle and elevated sleeping space for two.
– **Aluminium construction:** Manufactured using aluminium extrusions and laser-cut and bent components.

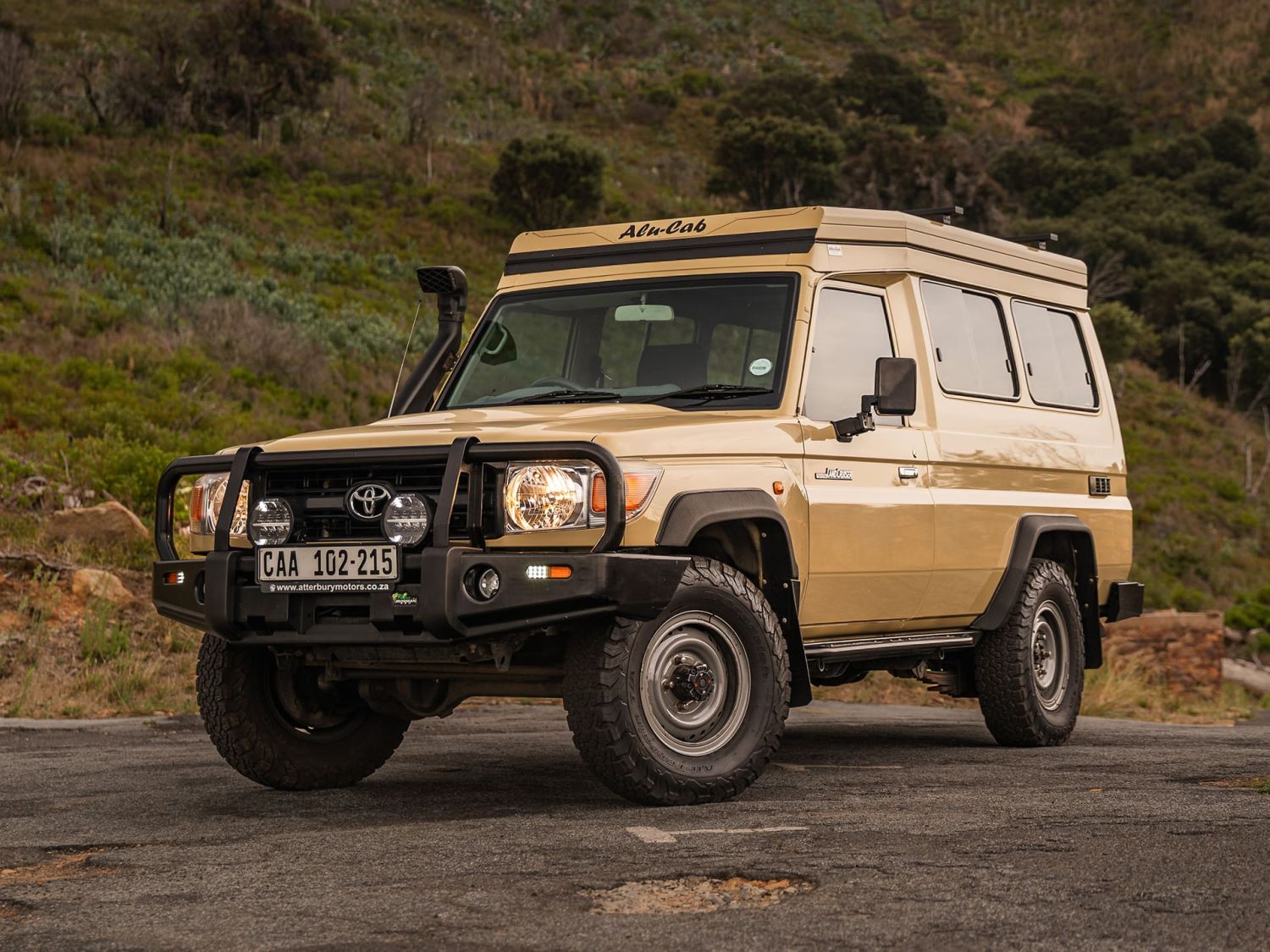

– **Aerodynamic roof profile:** Pressed roof design provides additional rigidity while following the vehicle’s lines.
– **150 kg dynamic roof load rating:** Supports compatible roof-mounted equipment while driving, within all applicable load limits.
– **Integrated roof cargo tracks:** Designed for compatible load bars and selected roof accessories.
– **Keep your bedding inside:** The sleeping setup can remain in place when the roof is closed.
– **Double-layer waterproof canvas:** 400 gsm UV-resistant, rip-resistant canvas designed for outdoor use.
– **Insulated roof lining:** Automotive roof liner with high-density closed-cell foam.

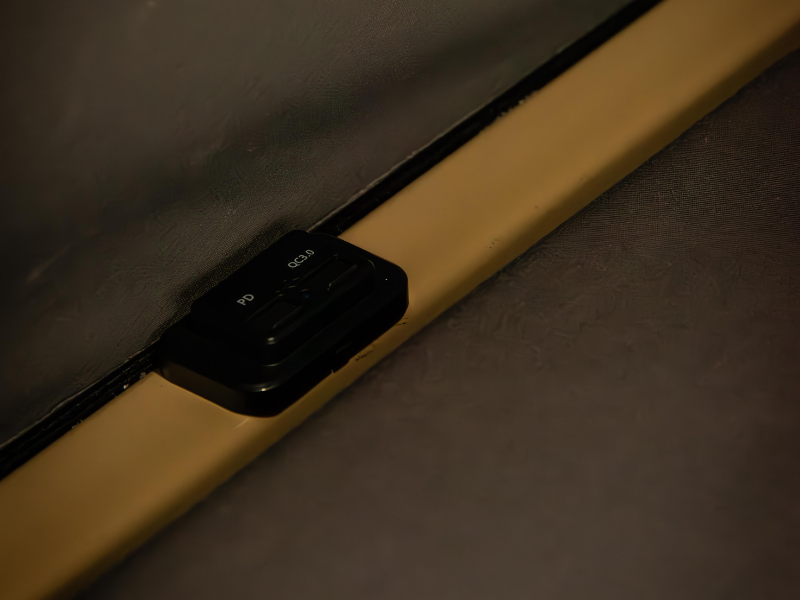

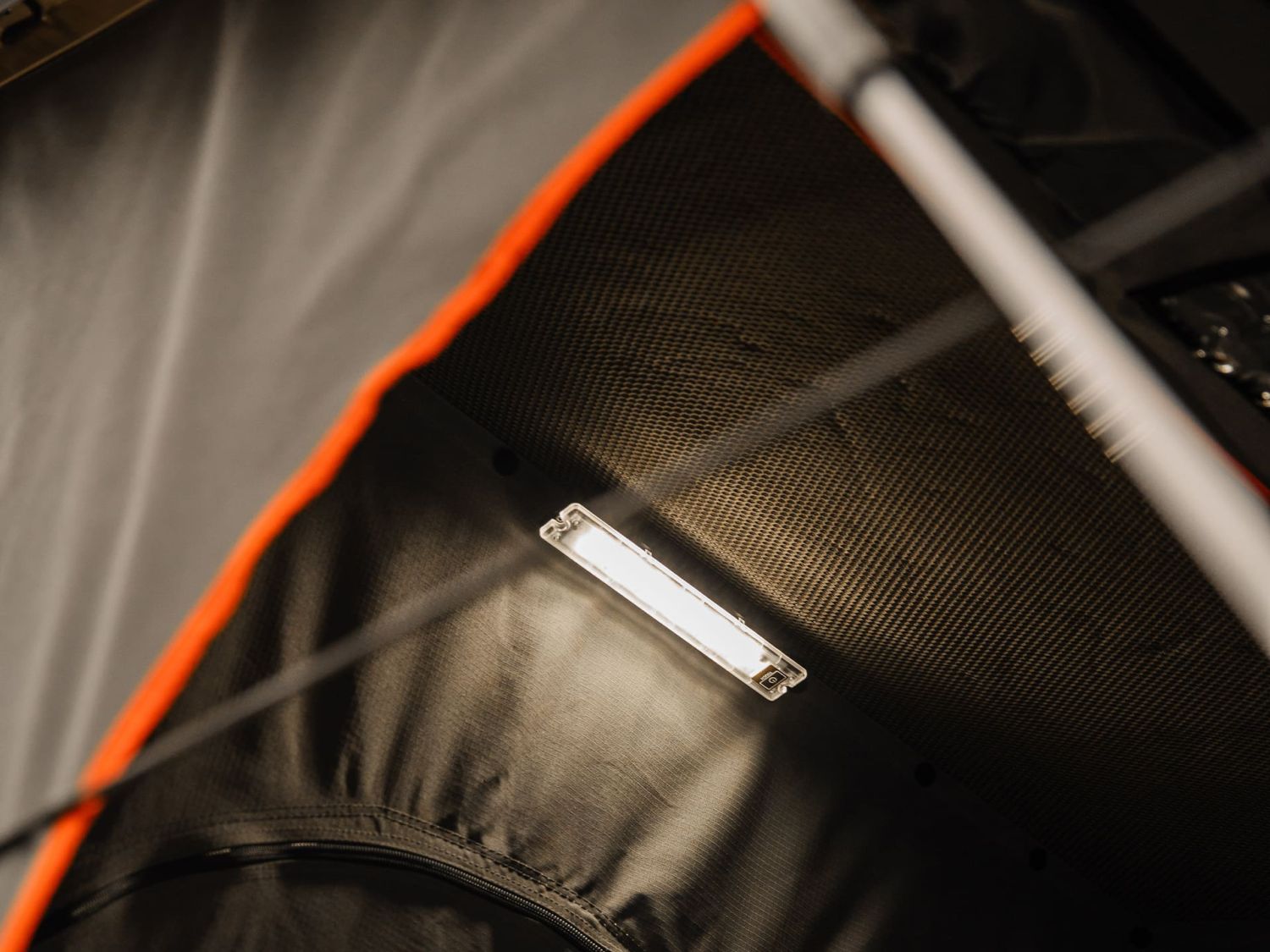

– **Internal lighting and power:** Integrated lighting with USB and USB-C charging ports.

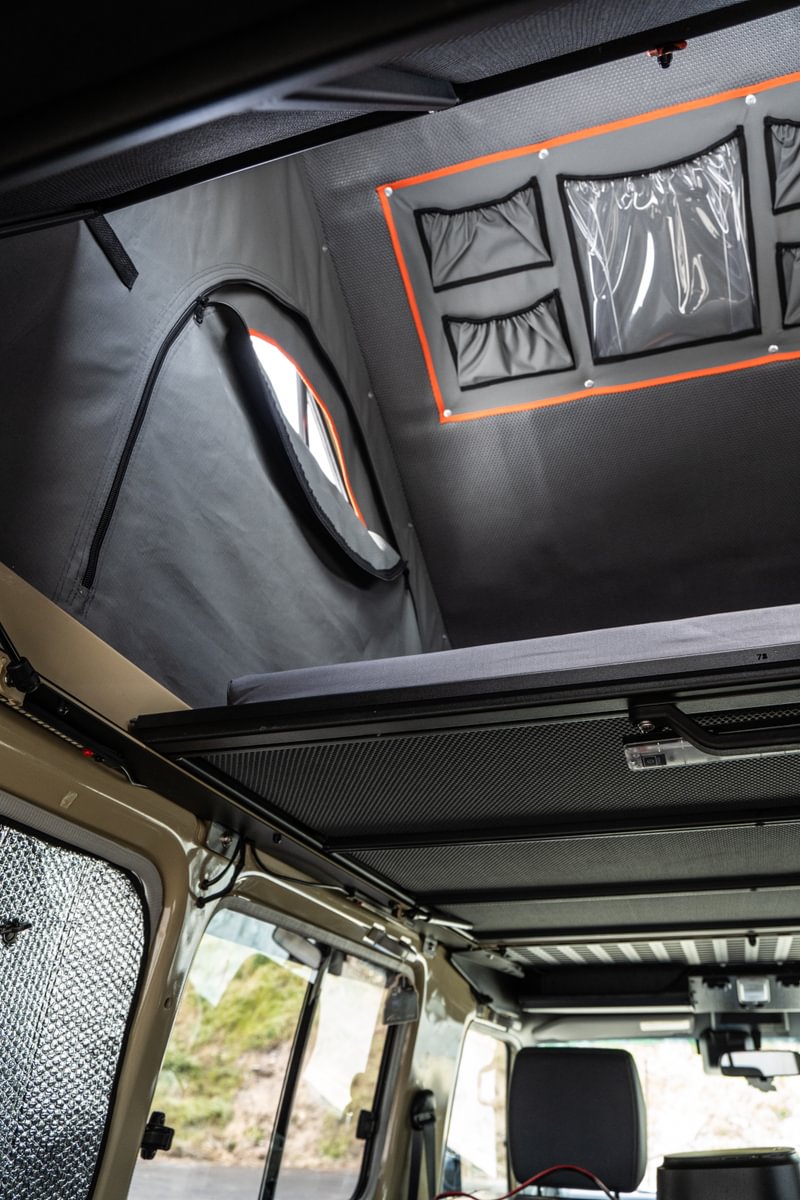

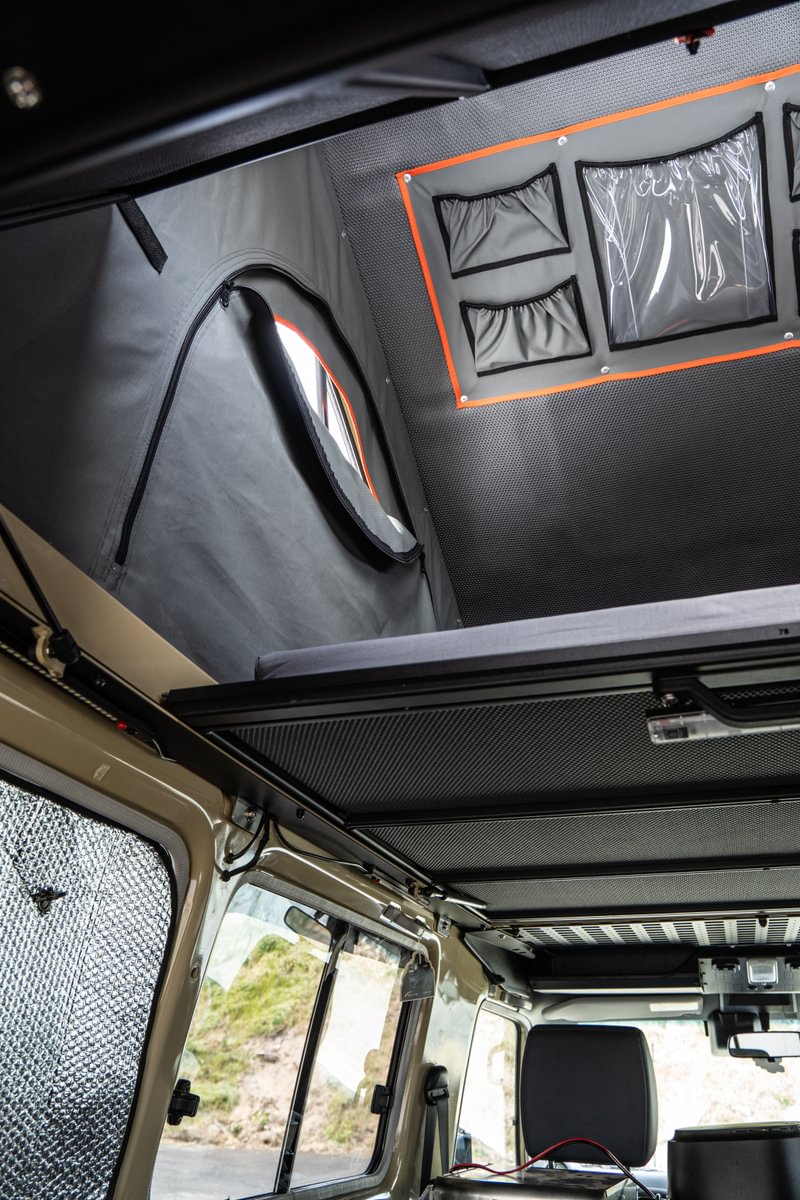

– **Internal storage:** Storage bags help organise smaller camping essentials.
– **MOLLE mounting provisions:** The console and MOLLE plate provide mounting options for compatible accessories.

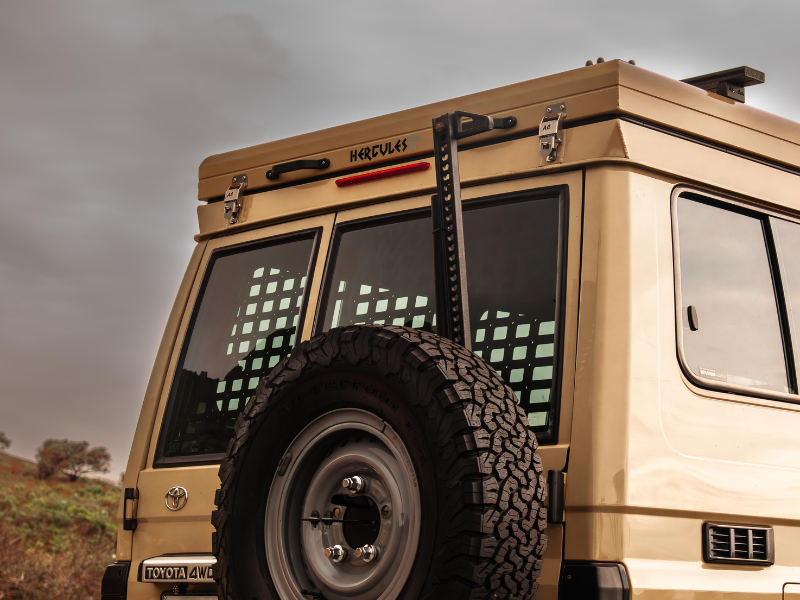

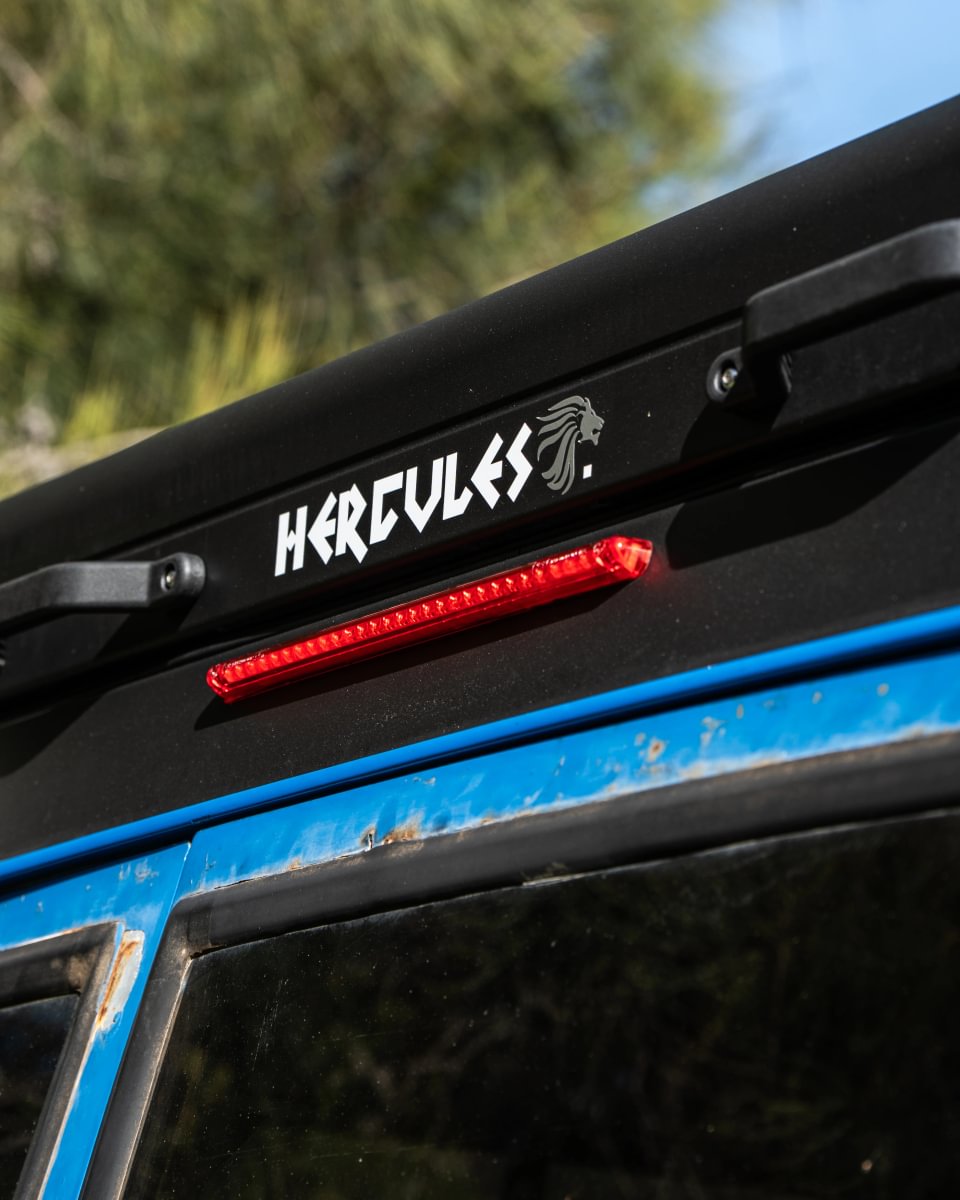

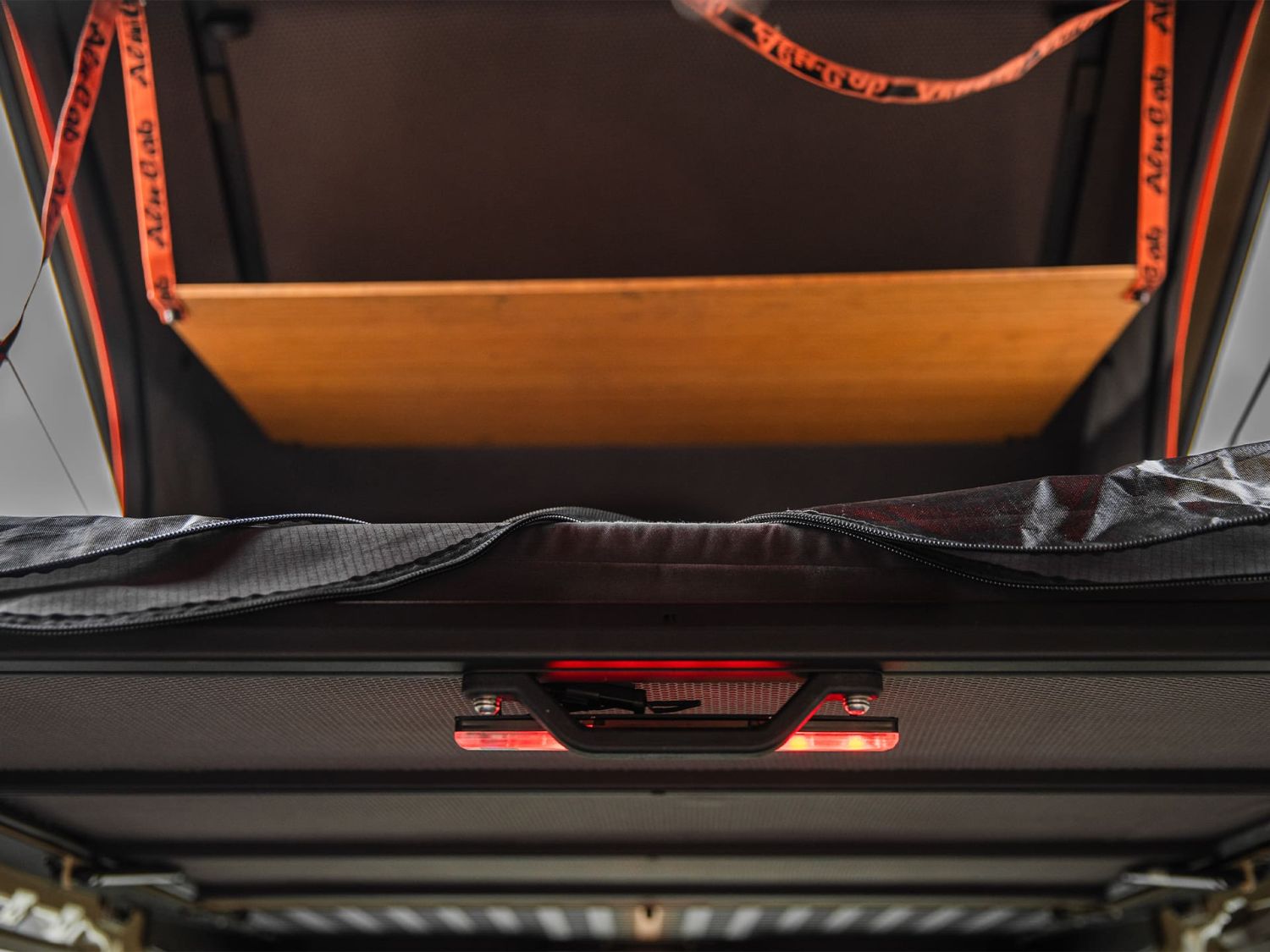

– **Integrated high-level brake light:** Features E-mark certification.
– **Integrated solar connection:** Simplifies connection to a compatible solar setup.
– **Secure closure system:** Purpose-designed latches help secure the roof when travelling.

Designed for Serious Overlanding

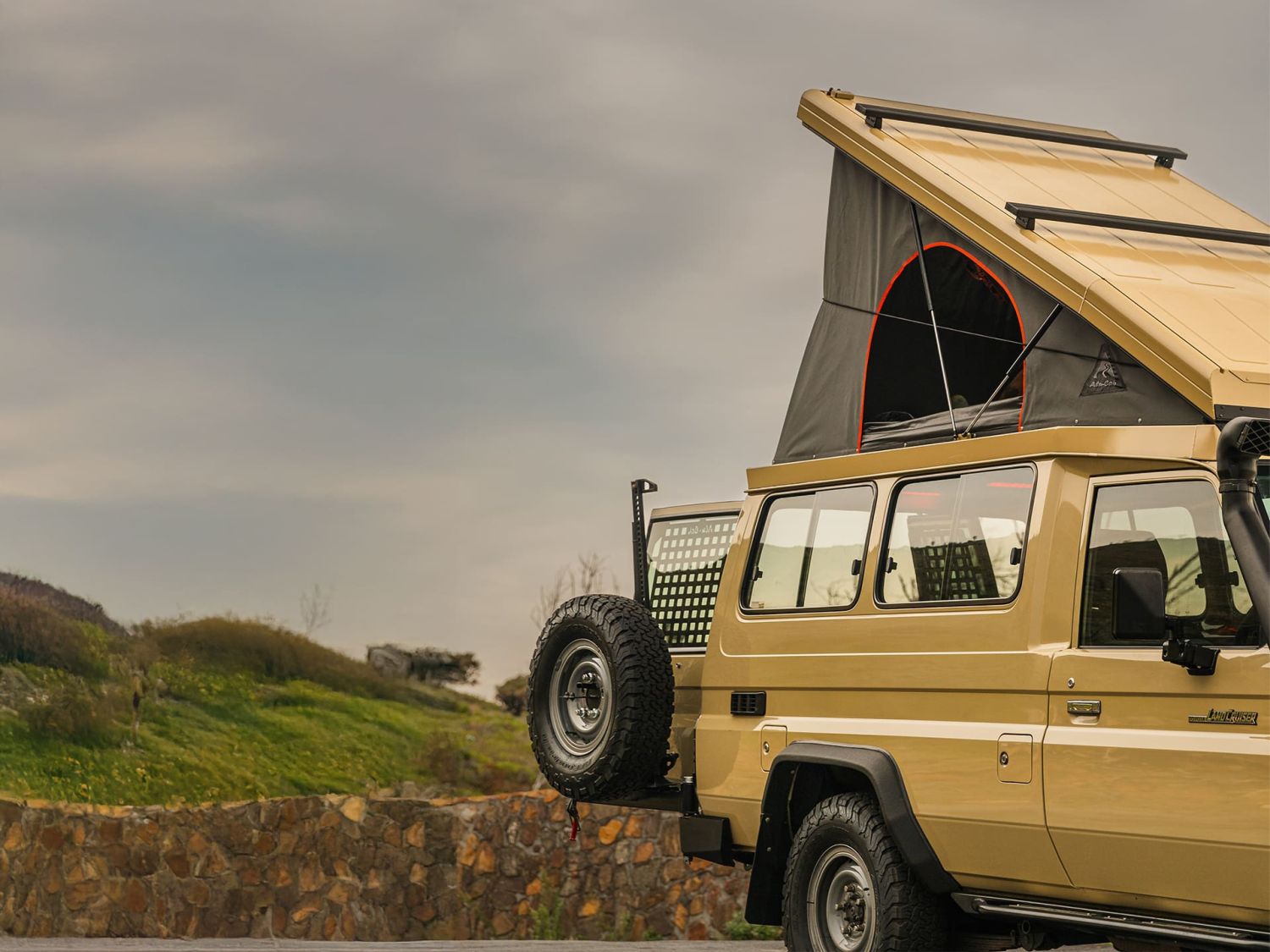

Standing Room and Interior Living Space

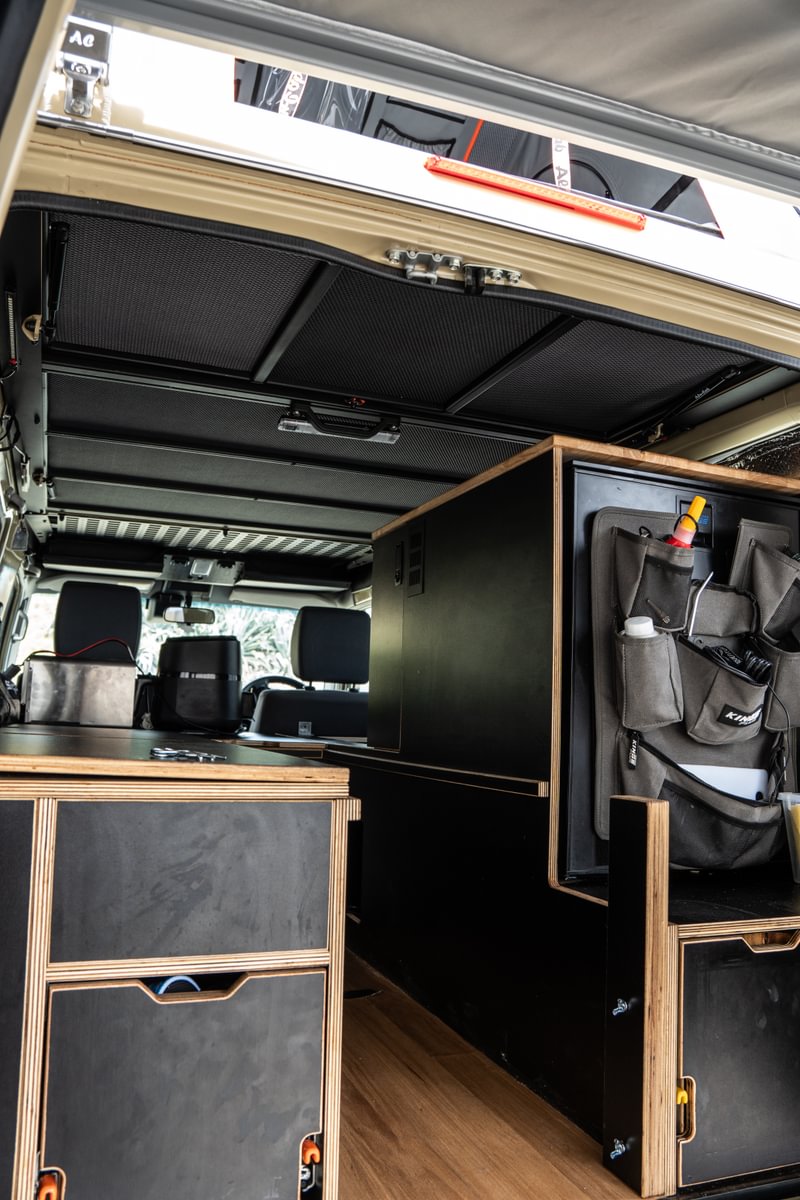

The Hercules opens up the interior of your Land Cruiser, giving you additional headroom for changing clothes, organising equipment and moving around inside the vehicle when camp is set up. The elevated sleeping platform makes better use of the Troopy’s interior space.

A Comfortable Sleeping Setup for Two

The integrated mattress measures 2,400 mm long by 1,160 mm wide and 70 mm thick. With the roof closed, your bedding can remain inside, reducing the amount of packing required when moving between campsites.

Built for Remote Travel

The aluminium structure, insulated roof lining and double-layer canvas are designed for practical use on extended trips. Integrated lighting, charging ports and storage provisions help keep essential items organised and accessible.

Roof-Mounted Equipment

Integrated cargo tracks allow compatible load bars and selected roof accessories to be installed. The published dynamic roof load rating is 150 kg, but the allowable load depends on the full vehicle and accessory setup.

Technical Specifications

| Specification | Details |
| Product | Hercules Roof Conversion |
| Vehicle application | Toyota Land Cruiser 75 and 78 Series Troopy, Gen 1 and Gen 2 |
| Vehicle year reference | 2009+; confirm exact vehicle compatibility |
| Sleeping capacity | 2 people |
| Construction | Aluminium extrusions and laser-cut and bent components |
| Available colours | Black, White and Beige |
| Closed roof dimensions | 2,864 mm L × 1,433 mm W × 232 mm H |
| Additional vehicle height | Approximately 140 mm |
| Mattress dimensions | 2,400 mm L × 1,160 mm W × 70 mm H |
| Conversion weight | Approximately 116 kg before accounting for removed vehicle components |
| Approximate net weight added | Approximately 84 kg, based on an estimated 32 kg of removed vehicle components |
| Dynamic roof load | 150 kg |
| Static roof load | 200 kg |
| Supported load with roof open | 50 kg |
| Canvas | 400 gsm UV-resistant, rip-resistant, double-layer waterproof canvas |
| Roof insulation | Automotive roof liner with high-density closed-cell foam |
| Lighting and power | Internal lighting, USB and USB-C ports |
| Roof accessories | Integrated cargo tracks for compatible load bars |
| Solar provision | Integrated solar connection |
| Brake light | Integrated high-level brake light with E-mark |

Important Load and Fitment Information

– Confirm the vehicle’s exact model, year and generation before ordering. The Hercules is listed for Toyota Land Cruiser 75 and 78 Series Troopy Gen 1 and Gen 2 applications.
– A roof conversion is a major vehicle modification that requires suitable installation. Confirm fitment arrangements and any applicable engineering or roadworthiness requirements before proceeding.
– The stated 150 kg dynamic rating applies to roof loads while driving. The 200 kg static rating applies while stationary. The 50 kg support figure with the roof open is a separate limit and must not be confused with the closed-roof load ratings.
– Account for the weight of load bars, rooftop equipment and mounting hardware when calculating the permitted load.
– The approximately 84 kg net weight added is an estimate based on the conversion weight less approximately 32 kg of removed vehicle components. The actual change depends on the vehicle and installation.
– Solar panels, load bars and other accessories are not included unless specified in your quotation.
– Confirm installation, warranty conditions and any vehicle-specific requirements with HJM Offroad before ordering.
