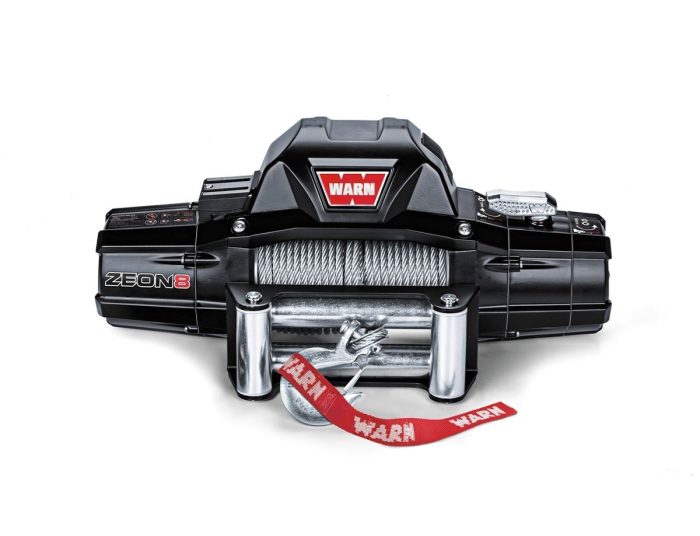

Warn Zeon 8 Steel Rope Winch
The ZEON 8 is a 12-volt electric winch is vehicle mounted and has a pull capacity of 8,000 pounds. It comes with a roller fairlead and a 100 feet of steel rope.
Please Note: This product requires a compatible bumper or mounting plate and must be mounted to a vehicle.
*Disclaimer: Images are for display purposes only and may include optional accessories, which are sold separately.
Product Details
Don’t let the good looks fool you. We’ve packed the ZEON 8 winch with all the performance features off-roaders said they needed most. From a heat dissipating brake down to an incredibly smooth planetary gear train, this winch is ready to hit the trail. The 8,000 Pounds pulling capacity, combined with a fast line speed make this winch the perfect choice for Jeep and SUV trail rigs.
Convertible Control Pack Can Be Attached To The Winch Or Remotely Mounted, Allowing For Various Winch Mounting Options And Looks
Satin Black Powder Coated Finish With Stainless Steel Fasteners And Clutch Lever Looks Great And Inhibits Corrosion
Improved Winch Sealing To Keep The Elements Out
Large Diameter Winch Drum Reduces Rope Wear, Is Lightweight, And Has An Integrated Rope Anchor For Easy Rope Installation
8,000 Pounds Single Line Pulling Capacity
100 Foot Of Durable 5/16 Inch Galvanized Steel Wire Rope
Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
| TYPE | Electric |
| MOUNT TYPE | Vehicle Mounted |
| RECOMMENDED USE | Vehicle Recovery |
| VOLTAGE | 12 Volt |
| ELECTRICAL CONTROL TYPE | Contactors |
| MOTOR TYPE | Series Wound |
| THERMAL SHUTOFF | No |
| DRIVE GEAR TYPE | Planetary |
| GEAR REDUCTION RATIO | 162:1 |
| FREE SPOOLING | Yes |
| BRAKE TYPE | Mechanical Cone |
| LINE DIAMETER (IN) | 5/16 Inch |
| LINE LENGTH (FT) | 100 Feet |
| LINE MATERIAL | Steel |
| FAIRLEAD TYPE | Roller |
| CONFORMS TO J706 STANDARDS | No |
| REMOTE TYPE | Handheld Remote Switch |
| MOUNTING HOLE QUANTITY | 4 |
| OPERATION TYPE | Automatic |

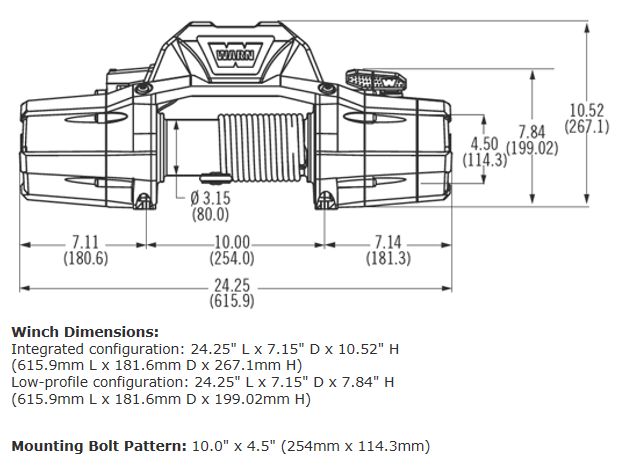

| MOUNTING PATTERN LENGTH (IN) | 10 Inch |
| MOUNTING PATTERN WIDTH (IN) | 4-1/2 Inch |
| INCLUDES MOUNTING HARDWARE | Yes |
| COLOR | Black |
| MAX AMP DRAW/ LINE PULL | 413 Amp Draw/ 8000 Pound |
| MAX LINE PULL/ LINE SPEED | 8000 Pound/ 6.2 Feet Per Minute |
