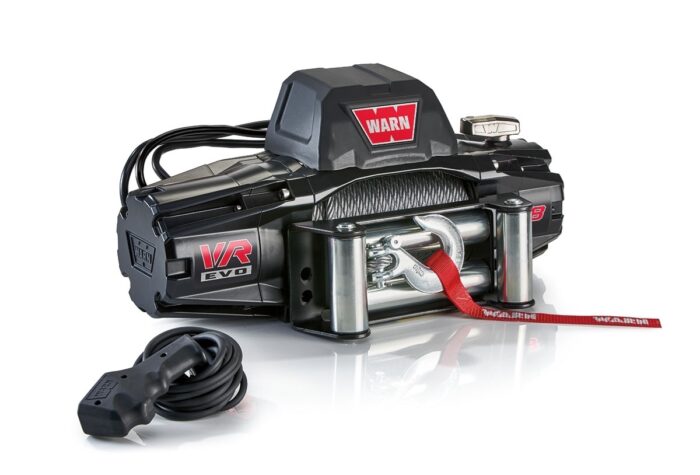

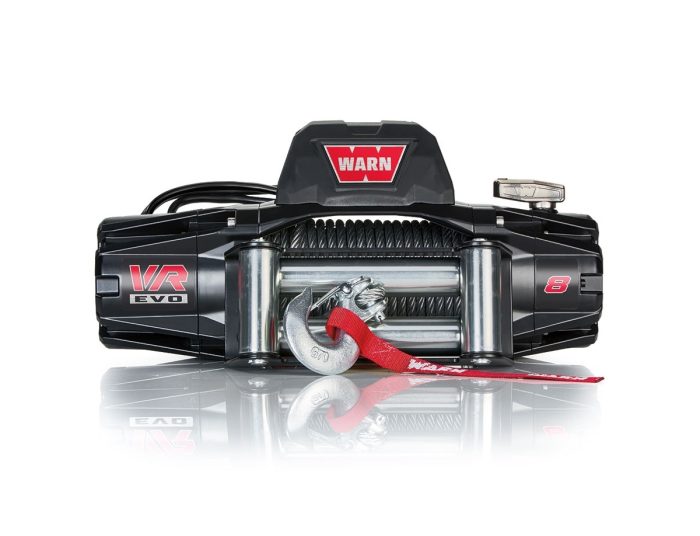

Warn VR EVO 8 Steel Rope Winch
Ideal on 2-door Jeeps and lighter SUVs for everyday pulls and getting yourself out of trouble. The VR EVO 8 features IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a corded remote with 11.5′ (3.5m) lead. With it’s fast line-speed and lower amp draw, the VR EVO winches are the hardest-working standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.
Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.
*Disclaimer: Images are for display purposes only and may include optional accessories, which are sold separately.
Product Details
• A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
• IP68-rated waterproof winch construction keeps the elements out
• High-performance Albright contactor delivers maximum reliability
• Control packs can be relocated for low-profile installations
• Durable, one-piece cast-aluminum tie-plate for added strength and durability
• Corded remote with 11.5′ (3.5m) lead
• Limited lifetime warranty for mechanical parts and 7 years on the electrical
| TYPE | Electric |
| RECOMMENDED USE | Vehicle Recovery |
| MOUNTING TYPE | Vehicle Mounted |
| VOLTAGE | 12 Volt DC |
| ELECTRICAL CONTROL TYPE | Albright Contactor |
| MOTOR TYPE | Series Wound |
| DRIVE GEAR TYPE | 3-Stage Planetary |
| GEAR REDUCTION RATIO | 218:1 |
| FREE SPOOLING | Yes |
| BRAKE TYPE | Spring |
| LINE DIAMETER (IN) | 5/16 Inch |
| LENGTH (FT) | 90 |
| LINE MATERIAL | Steel |
| FAIRLEAD TYPE | Roller |
| REMOTE TYPE | corded remote with 11.5′ (3.5m) lead |
| MOUNTING HOLE QUANTITY | 4 |

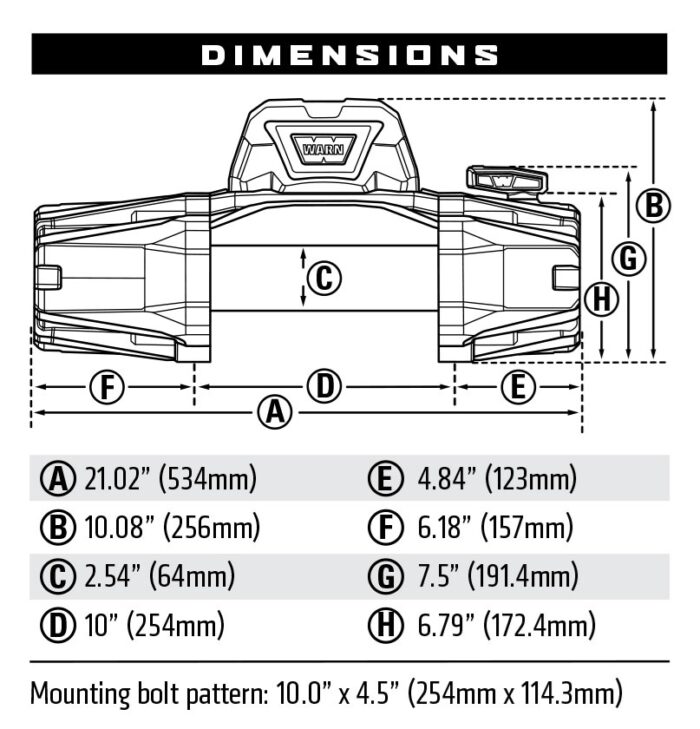

| MOUNTING PATTERN LENGTH (IN) | 10 Inch |
| MOUNTING PATTERN WIDTH (IN) | 4-1/2 Inch |
| INCLUDES MOUNTING HARDWARE | Yes |
| COLOR | Black |
| MAX LINE PULL/ LINE SPEED | 8000 Pound / 6.0ft per minute |
| MAX AMP DRAW/ LINE PULL | 298 Amps / 8000 Pound |
| DRUM MATERIAL | Steel |
