Toyota Land Cruiser Prado 150 Series 2010-2023 Big Country Savute Twin Drawer System

Toyota Land Cruiser Prado 150 Series 2010–2023 Big Country Savute Twin Drawer System

Upgrade your Toyota Land Cruiser Prado 150 Series 2010–2023 with the Big Country Savute Twin Drawer System, a practical and secure storage solution designed for touring, overlanding, camping, hunting, farming, safari and everyday 4×4 use.

The Savute Twin Drawer System features two side-by-side full-length drawers, a carpeted cargo deck and vehicle-specific mounting. It is available in two Prado 150 configurations:

• Floor Mount
• Seat Mount – supplied without side panels

Both configurations provide organised, lockable storage while making better use of the Prado 150’s rear cargo area.

Choose Your Prado 150 Mounting Configuration

Floor Mount

The Floor Mount configuration requires the Prado 150 jump seats to be completely removed.

Once the jump seats are removed, the drawer system bolts into the existing bolt holes in the load-bay floor using specifically engineered brackets.

Removing the jump seats also provides approximately 100 mm additional packing height, making this configuration particularly useful for customers wanting maximum available storage height.

The Floor Mount configuration includes the side panels, which wedge into position around the wheel arches and provide additional usable cargo-area space.

Seat Mount – No Side Panels

The Seat Mount configuration is designed to install over the folded-down jump seats.

It uses specifically designed brackets that attach to the existing fastener slots at the rear of the jump seats and then secure down onto the floor-mount bracket.

The Seat Mount version is supplied without the side panels covering the wheel arches.

This makes the Seat Mount a practical option where retaining the Prado 150’s jump seats in their folded position is preferred.

Key Features

• Big Country Savute Twin Drawer System
• Toyota Land Cruiser Prado 150 Series
• 2010–2023 application
• Two side-by-side full-length drawers
• Lockable drawers
• Keys included
• 80 kg load capacity per drawer
• 200 kg load capacity on top of the drawer system
• Carpeted drawer interiors and exteriors
• Carpeted wooden cargo deck
• Heavy-duty telescopic stainless-steel bearings
• Galvanised sheet-metal construction
• Black powder-coated finish
• Vehicle-specific mounting brackets
• Existing vehicle mounting points
• No drilling into the vehicle required for standard installation
• Fridge slider can be mounted to the top
• Floor Mount and Seat Mount options
• Seat Mount supplied without side panels
• Optional storage and touring accessories available

Two Full-Length Storage Drawers

The Savute Twin Drawer System gives the Prado 150 two large, accessible storage compartments.

Each drawer extends the full length of the system and provides 80 kg load capacity.

The drawers are lockable and supplied with keys, allowing recovery equipment, tools, camping equipment and other valuable gear to be kept organised and secured.

Ideal Drawer Storage

Use the drawers for:

• Recovery equipment
• Tools
• Camping equipment
• Cooking equipment
• Electrical equipment
• Spare parts
• Recovery straps
• Shackles
• Compressor equipment
• Outdoor gear
• Hunting equipment
• Farming equipment
• General touring equipment

Carpeted Cargo Deck

The top of the drawer system creates a large carpeted cargo surface for storing larger equipment such as:

• Fridges
• Suitcases
• Storage boxes
• Camping equipment
• Recovery bags
• Touring equipment

The carpeted construction also helps reduce rattling and protects equipment from chafing and movement when travelling over rough terrain.

Fridge & Touring Setup

A compatible fridge slider can be bolted to the top of the drawer system, creating a practical touring and overlanding configuration.

Optional upgrades include:

• Fridge sliders
• Drop-in storage boxes
• Tip-up work surface covers

Fridge slider and other optional accessories are sold separately.

When requesting a quotation for a fridge setup, please specify:

• Fridge brand
• Fridge model
• Fridge dimensions – Length × Width × Height
• Preferred fridge position

This allows the correct fridge slider and available clearance to be confirmed.

Wheel-Arch Storage – Floor Mount

The Floor Mount version incorporates removable side trim panels around the wheel arches.

These panels can be lifted to access useful storage areas around the wheel arches while also creating additional flat cargo space when installed.

Seat Mount – No Side Panels

The Seat Mount version does not include the side panels.

This is an important difference between the two configurations and should be selected correctly when requesting a quotation.

Load Capacity

Per drawer: 80 kg

On top of drawers: 200 kg

These are the published Big Country drawer-system capacities. They are not an increase to the Toyota Prado 150’s vehicle payload capacity.

The combined weight of passengers, fuel, drawer system, fridge, recovery equipment, camping equipment and other accessories must remain within the vehicle manufacturer’s permitted payload and axle limits.

Construction

The Big Country Savute Twin Drawer System uses:

• Galvanised sheet metal
• Powder-coated black face panels
• Powder-coated mild-steel mounting brackets
• 12 mm carpeted Superwood top
• Telescopic heavy-duty stainless-steel bearings
• Carpeted drawer interiors and exteriors

Dimensions

Overall External Dimensions:

• Height: 271 mm
• Length: 961 mm
• Width: 923 mm

Drawer Internal Dimensions:

• Height: 201 mm
• Length: 939 mm
• Width: 420 mm

Approximate system weight: 70 kg.

Ideal For

The Big Country Savute Twin Drawer System is suited to Prado 150 owners using their vehicles for:

• 4×4 Touring
• Overlanding
• Camping
• Hunting
• Farming
• Game Farm Travel
• Safari
• Lodge Operations
• Long-Distance Travel
• Remote-Area Travel
• Off-Road Driving
• Recovery Equipment Storage
• Fridge-Based Touring
• Everyday Cargo Organisation

Important – Select the Correct Mount

When requesting a quotation, please specify:

1. Floor Mount
or
2. Seat Mount – No Side Panels

The two configurations install differently and should not be treated as interchangeable.

Floor Mount

• Jump seats removed
• Mounts directly to existing load-bay floor bolt holes
• Side panels included
• Approximately 100 mm additional packing height after jump-seat removal

Seat Mount

• Mounts over folded-down jump seats
• Uses existing jump-seat fastener locations
• Side panels are not supplied
• Retains the jump seats in their folded position

Important Existing Cargo-Area Modifications

If your Prado 150 already has an aftermarket or custom cargo-area system fitted, please specify this in the order notes when requesting a quotation or placing your order.

This includes:

• Existing drawers
• Custom flooring
• Fridge
• Fridge slider
• Cargo barrier
• Battery system
• Water tank
• Auxiliary electrical equipment
• Custom storage
• Other cargo-area accessories

Existing modifications may affect available space, mounting points and final fitment.

Prado 150 Fitment

The Big Country Savute Twin Drawer System is designed specifically for the Toyota Land Cruiser Prado 150 Series.

HJM currently lists the application from 2010 through 2023.

Please provide the exact vehicle year and selected mounting configuration when requesting a quotation.

Do not assume a drawer system designed for the Prado 120, Prado 250, Land Cruiser 200, Land Cruiser 300 or another vehicle will fit the Prado 150.

Supply & Fit HJM Offroad

Supply & Fit HJM Offroad Johannesburg or Cape Town, South Africa.

Choose the correct Floor Mount or Seat Mount configuration when requesting your quotation.

We can also assist with compatible fridge sliders and other touring accessories to complete your Prado 150 storage setup.

South African Specification Vehicles Only.

Please provide the exact vehicle year, specification, mounting option and existing cargo-area modifications when requesting a quotation.

Load & Vehicle Payload Notice

The stated 80 kg per drawer and 200 kg top capacity are drawer-system ratings.

They do not increase the Prado 150’s vehicle payload capacity.

Always remain within Toyota’s permitted payload and axle-load limits after accounting for passengers, fuel, drawer system, fridge, recovery equipment, camping equipment and all other accessories.

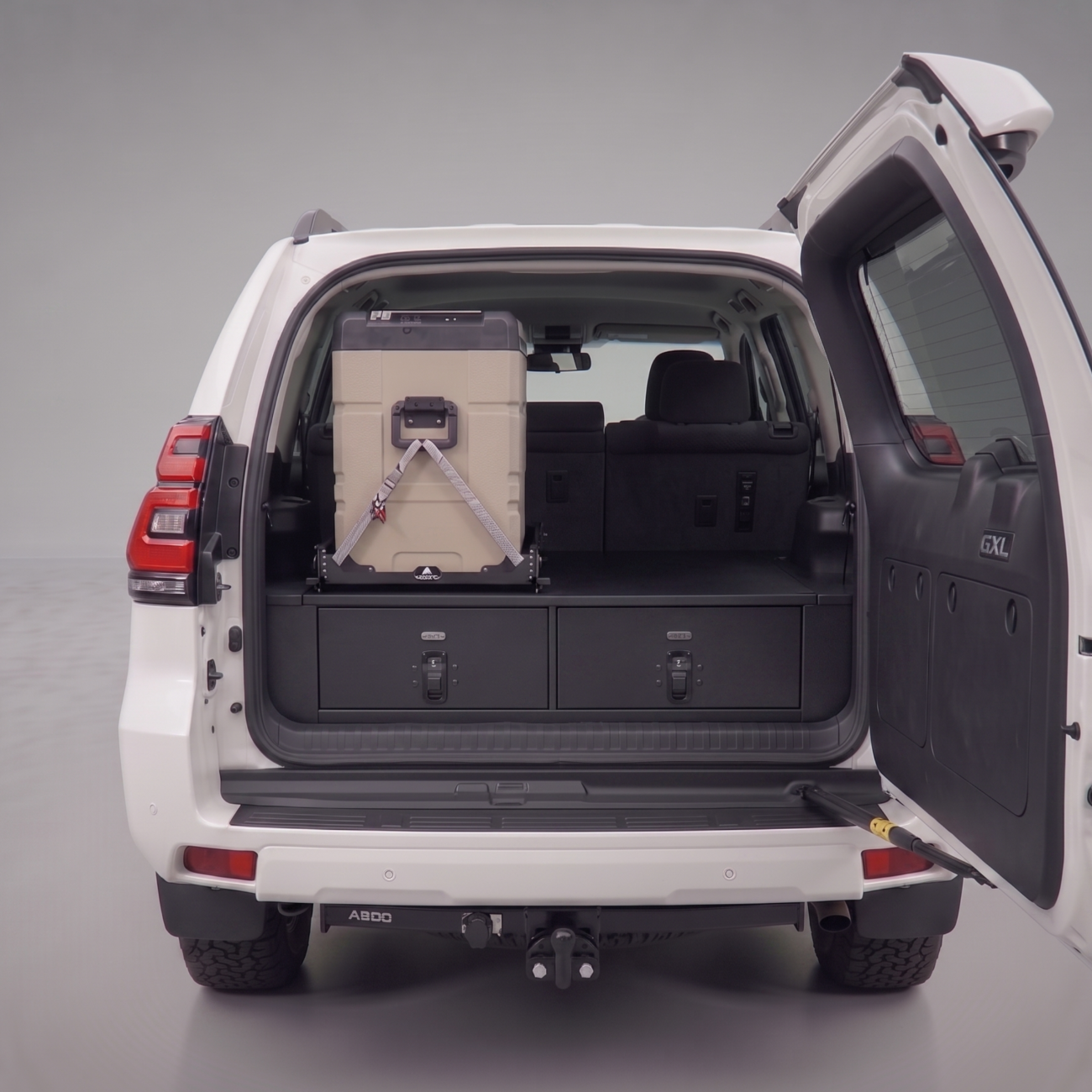

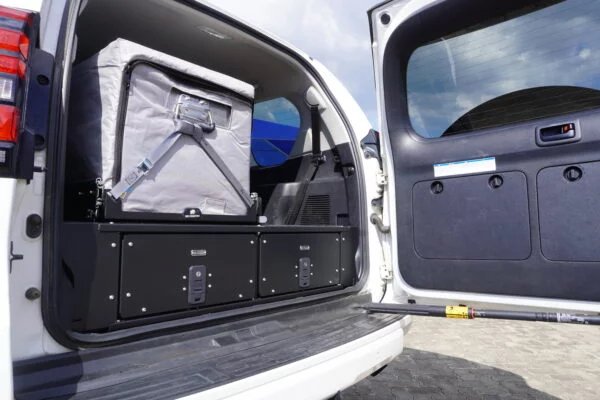

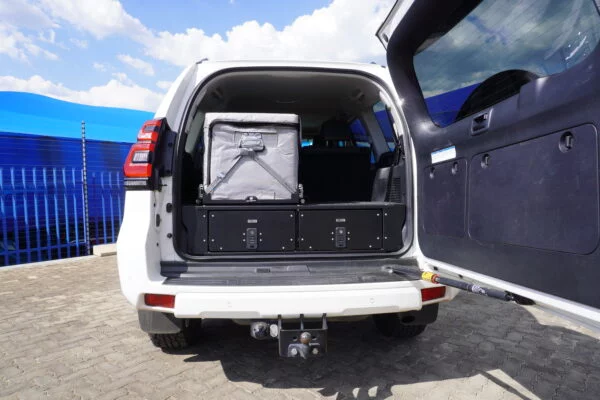

Image for illustrative purposes only. Vehicle shown is for display purposes and may not represent the exact product, vehicle specification or final fitment. Actual product appearance and fitment may vary. Optional accessories shown in images may be sold separately.
