Alu-Cab Universal Drawer System – Single & Double Drawer

Alu-Cab Universal Drawer System – Single & Double Drawer

Keep your gear organised, secure and easy to access with the Alu-Cab Universal Drawer System.

Built for touring, overlanding, camping, work and adventure vehicles, the Alu-Cab Drawer System provides a practical way to organise recovery equipment, tools, camping gear, cooking equipment and everyday essentials.

Available in single or double drawer configurations and three different lengths, the system can be selected according to the available space in your vehicle or canopy setup. Each drawer is designed to accommodate two Alu-Cab Ammo Boxes, providing a practical modular storage solution for your build.

Why Choose the Alu-Cab Drawer System?

Quick, organised access to your gear means:

• Less time unpacking
• Easier access to equipment
• Better use of available storage space
• More organised vehicle builds
• Secure storage for touring and adventure equipment
• Easy packing and unpacking

The Alu-Cab Drawer System is designed to withstand the demands of regular travel and outdoor use while providing a clean, practical storage solution.

Key Features

• Genuine Alu-Cab Universal Drawer System
• Available in Single Drawer or Double Drawer
• Three available lengths
• 750, 1230 and 1450 internal drawer length options
• Each drawer accommodates two Alu-Cab Ammo Boxes
• Durable construction
• Easy-to-clean finish
• Practical full-length storage
• Designed for touring and overlanding applications
• Suitable for vehicle and canopy-based storage installations
• Compatible with selected Alu-Cab storage accessories
• Optional fridge slide solutions available
• Optional Alu-Cab Ammo Boxes
• Optional Ammo Box Slides
• Modular approach for custom vehicle storage layouts

Available Configurations

The Alu-Cab Universal Drawer System is available in six configurations.

Single Drawer – 750

Overall dimensions:

815 × 500 × 280 mm

Approximate weight:

16 kg

Internal drawer storage:

750 × 420 × 234 mm

Single Drawer – 1230

Overall dimensions:

1295 × 500 × 280 mm

Approximate weight:

25 kg

Internal drawer storage:

1230 × 420 × 234 mm

Single Drawer – 1450

Overall dimensions:

1515 × 500 × 280 mm

Approximate weight:

27 kg

Internal drawer storage:

1450 × 420 × 234 mm

Double Drawer – 750

Overall dimensions:

815 × 1000 × 280 mm

Approximate weight:

34 kg

Internal drawer storage per drawer:

750 × 420 × 234 mm

Double Drawer – 1230

Overall dimensions:

1295 × 1000 × 280 mm

Approximate weight:

50 kg

Internal drawer storage per drawer:

1230 × 420 × 234 mm

Double Drawer – 1450

Overall dimensions:

1515 × 1000 × 280 mm

Approximate weight:

55 kg

Internal drawer storage per drawer:

1450 × 420 × 234 mm

Ammo Box Compatible

Each drawer is designed to accommodate two Alu-Cab Ammo Boxes, allowing equipment to be separated into smaller, removable storage containers.

This makes the system particularly useful for organising:

• Recovery gear
• Tools
• Camping equipment
• Cooking equipment
• Electrical equipment
• Spare parts
• First-aid equipment
• Fishing equipment
• Hunting equipment
• General vehicle equipment

Alu-Cab also offers compatible Ammo Box Slides as an optional storage accessory.

Fridge & Touring Setup

The drawer system can be incorporated into a larger touring or overlanding storage configuration.

Depending on the vehicle and available space, Alu-Cab’s Tilting Fridge Slides can be used as part of the overall storage setup. The fridge-slide range includes several sizes and is designed to provide secure fridge access while retaining a practical pull-out configuration.

Fridge, fridge slide and other accessories are additional products unless specifically included in the quotation.

Fridge Information Required

If you require a fridge setup, please provide in the Comment Section:

• Fridge brand
• Fridge model
• Fridge dimensions – Length × Width × Height
• Preferred fridge position

This allows the available space and required accessories to be confirmed before ordering.

Universal Application

Unlike vehicle-specific drawer systems, the Alu-Cab Drawer System is offered as a universal storage solution in different lengths and widths.

This makes it suitable for integration into a variety of:

• 4×4 vehicles
• Pickup load bins
• Canopies
• Overland builds
• Touring vehicles
• Camping trailers
• Workshop and utility vehicles
• Custom storage platforms

Vehicle-specific mounting brackets are not included as a universal standard. Alu-Cab’s current product documentation lists no compatible brackets for the universal Drawer System, so the available mounting method and installation requirements should be confirmed for the intended vehicle or storage platform.

Important – Measure Before Ordering

Because this is a universal drawer system, available installation space must be confirmed before ordering.

Please check:

• Available length
• Available width
• Available height
• Wheel-arch clearance
• Existing canopy or load-bin configuration
• Existing flooring
• Existing drawer or storage systems
• Fridge position
• Tailgate clearance
• Access to mounting points

The drawer system dimensions are the product dimensions and do not automatically represent the available usable space inside your vehicle.

Existing Aftermarket Equipment

If your vehicle or canopy already has an aftermarket drawer system, flooring, fridge slide, canopy accessories, load-bin liner, storage system or other modifications fitted, please specify this in the order notes when requesting a quotation or placing an order.

Existing equipment may affect:

• Available installation space
• Mounting
• Clearance
• Drawer operation
• Fridge positioning
• Tailgate operation
• Final installation requirements

Fitment must be confirmed before ordering where existing aftermarket equipment or modifications are present.

Product Specifications

Internal drawer storage width: 420 mm
Internal storage height: 234 mm
Available internal drawer lengths: 750 / 1230 / 1450 mm

Ideal For

The Alu-Cab Universal Drawer System is suited to:

• 4×4 Touring
• Overlanding
• Camping
• Safari
• Hunting
• Farming
• Game Farm Travel
• Remote-Area Travel
• Work & Utility Vehicles
• Fleet Builds
• Workshop Vehicles
• Expedition Builds
• Canopy Builds
• Adventure Vehicles

Supply & Fit – HJM Offroad

HJM Offroad can supply and fit the Alu-Cab Universal Drawer System for suitable vehicle and canopy applications.

Available through:

HJM Offroad Johannesburg – Randburg
HJM Offroad Cape Town – Durbanville

When requesting a quotation, please provide:

• Vehicle make and model
• Vehicle year
• Cab configuration where applicable
• Available installation dimensions
• Existing canopy or load-bin setup
• Existing aftermarket accessories
• Fridge details, if applicable
• Preferred drawer configuration and length

South African Specification Vehicles Only.

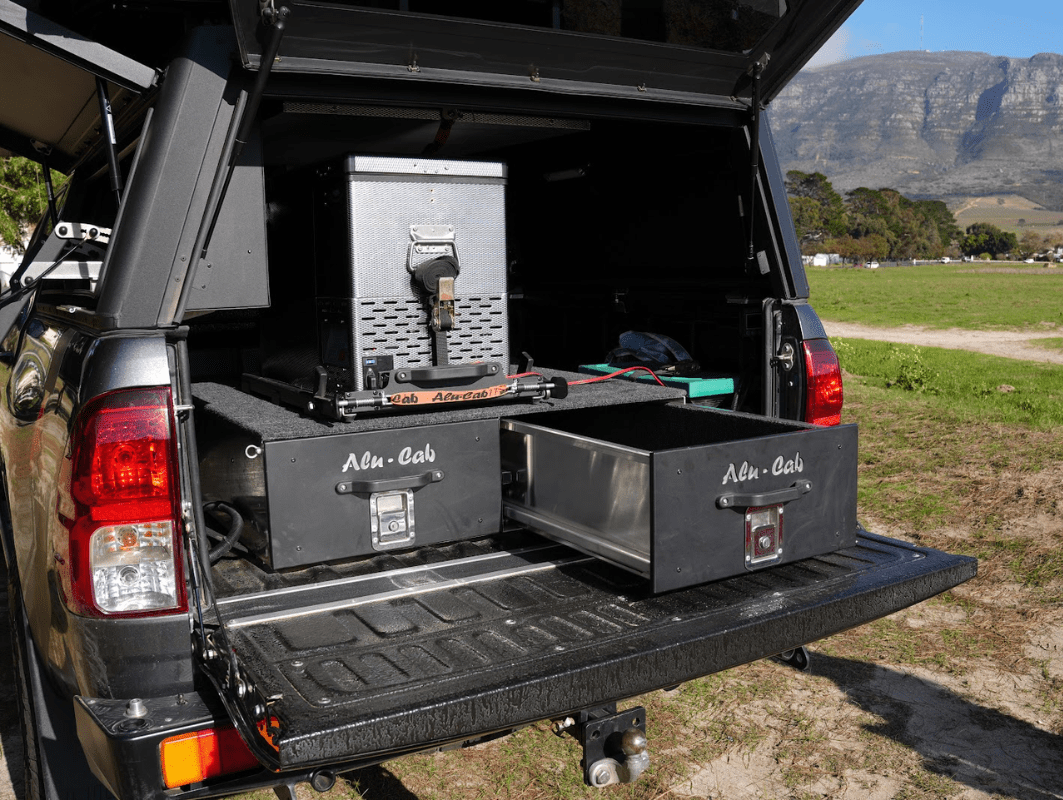

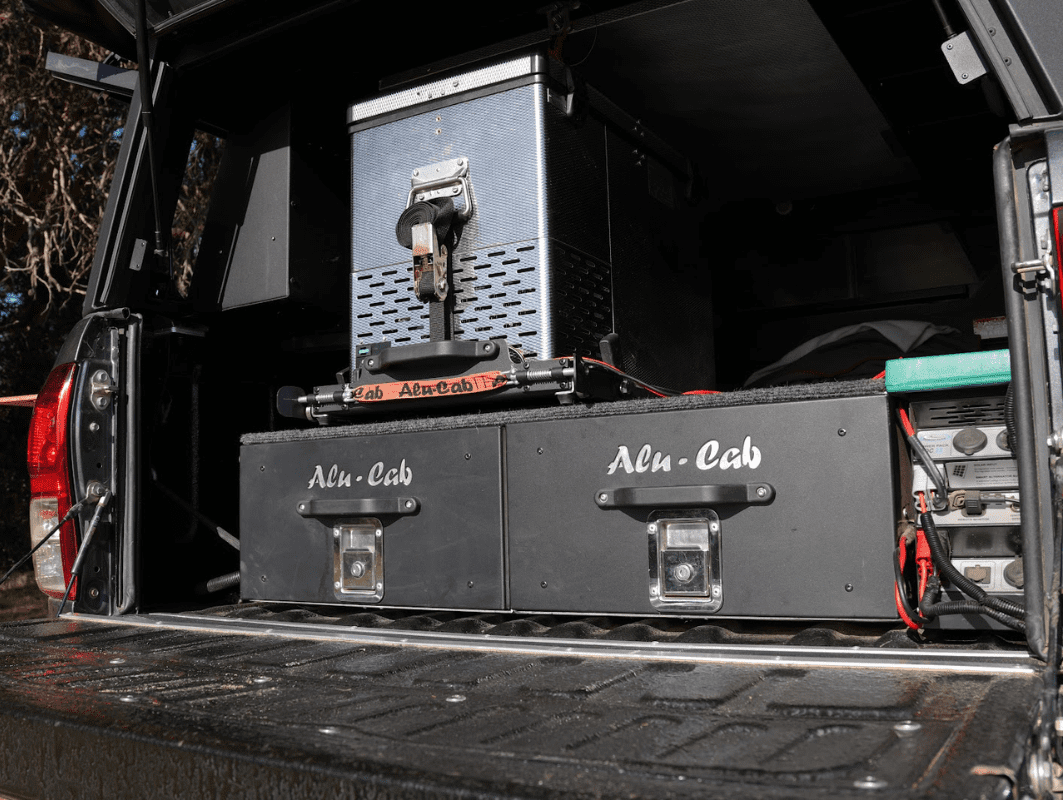

Image for illustrative purposes only. Vehicle shown is for display purposes and may not represent the exact product, vehicle specification or final fitment. Actual product appearance and fitment may vary. Optional accessories shown may be sold separately.
