Garmin Tread® XL – Overland Edition 10” All-Terrain navigator
| General | |
|---|---|
| Dimension | 9.9″W x 7.8″H x 1.2″D (25.2 x 19.9 x 3.1 cm) |
| Weight | 32.8 oz (930 g) |
| Water rating | IPX7 |
| Display Type | Multi-touch, glass, high brightness HD colour TFT with white backlight |
| Display Size | 8.5″W x 5.3″H (21.7 cm x 13.6 mm); 10.1″ diagonal (25.7 cm) |
| Display Resolution | 1,280 x 800 pixels |
| Dual-Orientation Display | Yes |
| Magnetic Mount | Locking magnet-assisted mount |
| 1.5″ ball adapter with AMPS plate | Yes |
| Drop rating | MIL-STD-810 |
| Dust rating | IP6X |
| Battery type | Rechargeable lithium-ion |
| Battery life | Up to 6 hours at 50% backlight Up to 1 hour at 100% backlight |
| Maps & memory | |
|---|---|
| Preloaded street maps | Yes |
| Data cards | microSD™ card (not included) |
| 3D Terrain | Yes |
| Internal storage | 64 GB |
| Ability to add maps | Yes |
| Storage and Power Capacity | Yes (256 GB max microSD™ card) |
| Includes map updates | Yes |
| Downloadable Satellite Imagery | Yes (BirdsEye) |
| BirdsEye Direct Satellite Imagery | Yes |
| TOPO map support | Yes |
| Sensors | |
|---|---|
| GPS | Yes |
| Galileo | Yes |
| Barometric altimeter | Yes |
| Compass | Yes |
| 10 Hz multi-GNSS positioning | Yes |
| Outdoor recreation | |
|---|---|
| Point-to-point navigation | Yes |
| PRELOADED TOPOGRAPHIC MAPS | Yes |
| Navigate-a-track navigation | Yes |
| Turn-by-turn trail navigation | Yes |
| Camera features | |
|---|---|
| Backup camera compatible | yes (BC™ 50) |
| Navigation features | |
|---|---|
| Garmin Real Directions™ landmark guidance | Yes |
| TripAdvisor® Traveller Ratings | Yes |
| Route shaping through preferred cities/streets | Yes |
| Traffic Updates | Yes (with Garmin Tread app) |
| Lane assist with junction view (displays junction signs) | Yes |
| Bluetooth® calling | yes (works with BLUETOOTH-compatible helmet, headset or smartphone; BLE capable) |
| Speed limit indicator (displays speed limit for most major roads) | Yes |
| Advanced features | |
|---|---|
| Smart notifications via app | Yes |
| Wi-Fi® map and software updates | Yes |
| Access to live services via app | Yes |
| Motorcycle features | |
|---|---|
| Control music and media from smartphone or MP3 player | Yes |
| Sunlight readable and weather resistant | Yes |
| GARMIN ADVENTUROUS ROUTING™ | Yes |
| Motorcycle or powersports specific points of interest for cycle repair services, dealers and more | Yes |
| Elevation profile | Yes |
| Round trip routing | Yes |
| Service History Log | Yes |
| Custom map support | Yes |
| Camper features | |
|---|---|
| Specialised routing for the size and weight of your vehicle | yes |
| Camper Sites & Services Directory | Yes |
| Road elevations | yes |
| Speed limit changes | Yes |
| Easy Route Planner with GPX file sharing | Yes |
| Adventure features | |
|---|---|
| Built-in inReach® Technology (requires active subscription; subject to regulations or prohibitions in some jurisdictions) | Yes |
| Pair with Garmin PowerSwitch™ digital switch box | Yes |
| Compatible with Group Ride Tracker (6”, 8” and 10”) | Yes |
| Compatible with external GPS antenna with mount | Yes |
| Compatible with external inReach® satellite antenna | Yes |
| Group Ride Mobile | Yes (with Garmin Tread app) |
| Track recorder (breadcrumbs) | Yes |
| iOverlander™ points of interest | Yes |
| Pitch and roll gauges | Yes |
| Birdseye Satellite Imagery (download via Wi-Fi) | Yes |
| Glove-friendly touchscreen | Yes |
| Outdoor applications | |
|---|---|
| Dog tracking | Yes (when paired to compatible dog track system) |
Product Details
ROAM THE UNKNOWN
Built for every part of the journey, this extra big, extra rugged all-terrain navigator has the mapping you need to stay on track and communication technology to stay in touch while you’re out there.
Navigate unpaved roads and trails by using turn-by-turn trail navigation1 with OpenStreetMap (OSM).
Custom routing for the size and weight of your rig2 and preloaded iOverlander™ points of interest (POIs) help you find where to set up camp.
This rugged navigator is IP67 weather-resistant and has a 10″ ultrabright touchscreen display.
See vivid aerial views of terrain with downloadable, subscription-free BirdsEye Direct Satellite Imagery.
Use the Tread® app3 on your compatible smartphone to sync data across your various devices and plan routes.
Peace of mind comes built-in. With an active subscription, you can use inReach® technology for global satellite communication4.
Built for the journey ahead.
OFF-ROAD RUGGEDNESS
Purpose-built for all-terrain use, this Tread device stands up to anything the elements can throw at it. It’s IP67-rated for water-resistance.
HIGH-VISIBILITY DISPLAY
With its ultrabright 10″ glove-friendly touchscreen, the navigator is designed for easy viewing in bright sunlight or pitch dark. It can be mounted in portrait or landscape mode.
TRAIL NAVIGATION
Enjoy turn-by-turn trail navigation1 for traversing unpaved roads and trails using adventure roads and trails map content comprised of OSM.
BUILT-IN INREACH TECHNOLOGY
Built-in inReach technology offers global satellite communication, two-way text messaging, location sharing, interactive SOS and weather updates4 (active satellite subscription required).
MAPS ON AND OFF-ROAD
Tread features preloaded topographic maps with 3D terrain and streets maps for Europe, Africa including Tracks4Africa and Middle East. It also includes detailed street maps of Europe with custom routing for the size and weight of your rig2. North and South America, Australia and New Zealand maps are available as free downloads via garmin.com/express.
SATELLITE IMAGERY
Enjoy vivid aerial views when you download high-resolution BirdsEye Direct Satellite Imagery directly to your device via Wi-Fi® connectivity, with no annual subscription required.
POINTS OF INTEREST
Tread comes preloaded with iOverlander points of interest, ACSI™, Campercontact™ and Trailer’s PARK™ so you don’t need a mobile phone signal to route to the best-established, wild and dispersed campsites.
ABC SENSORS
When you’re headed to tough-terrain, the built-in sensors will come in handy — including an altimeter, barometer, compass and pitch/roll gauges.

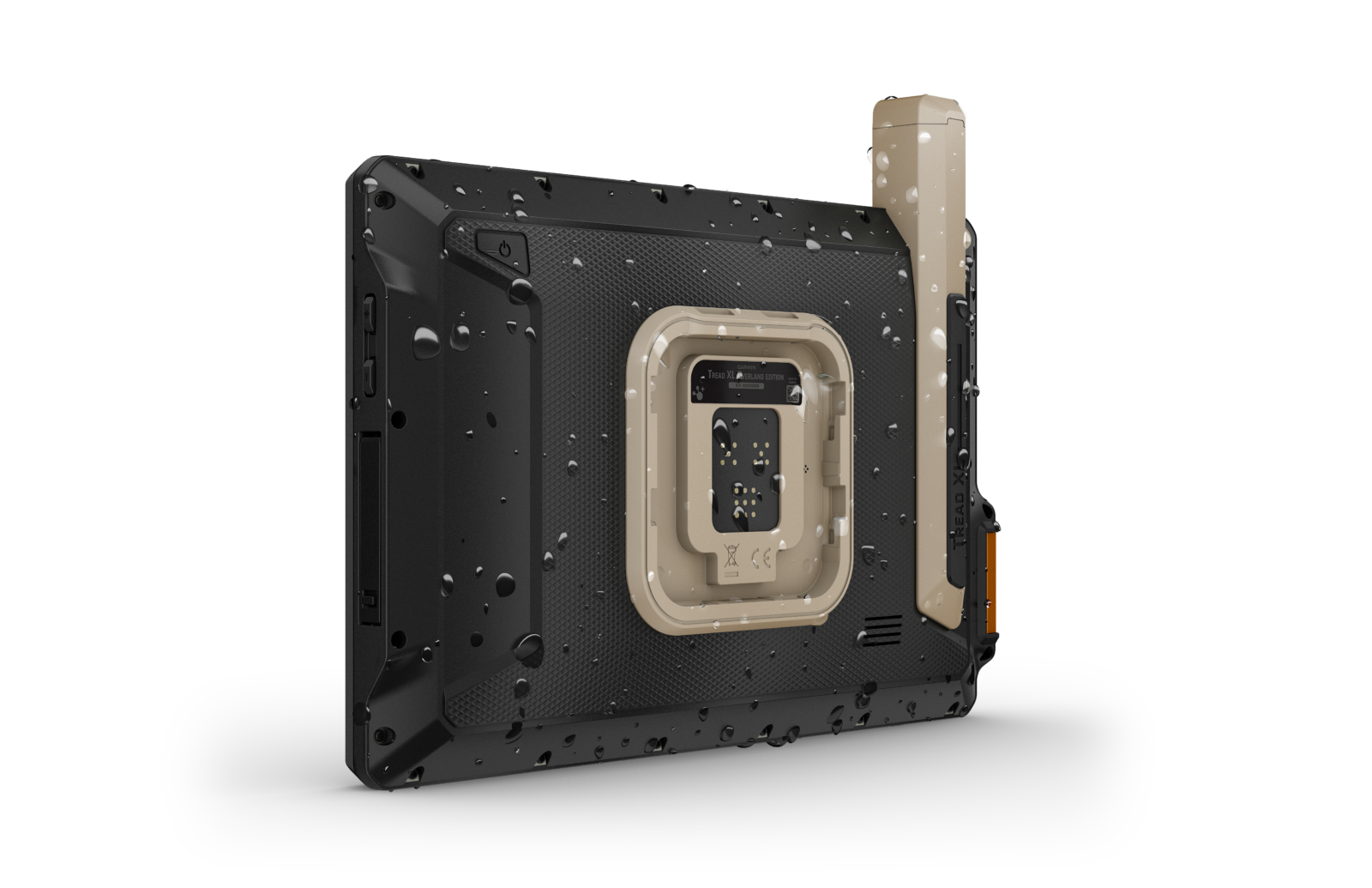

SECURE MOUNT
Use the included locking magnet-assisted mount to secure the navigator to your vehicle.
Connect for a better adventure.
GROUP RIDE MOBILE
Pair your device with the Tread app to track your friends from your phone using the Group Ride Mobile feature3.
EASY ROUTE PLANNER
Use the Tread app to easily plan routes with the same maps, vehicle profiles and route preferences that you have on the Tread device.
EASILY SYNC YOUR DEVICES
Use the Tread app to sync waypoints, tracks, routes and collections across all your devices. Easily import and share GPX files, too.
LIVE WEATHER
Weather ahead? Pair your Tread device with your compatible smartphone, and download the Tread app to access live weather, storm alerts, animated radar and more.
Overlanding equipment for expeditions.
CONTROL YOUR ACCESSORIES
Pair Tread with the compatible Garmin PowerSwitch™ digital switch box (sold separately) to enable on-screen control for your vehicle’s 12-volt electronics — light bars, differential locks and more.
GROUP RIDE TRACKER
Pair your device with the compatible Group Ride Tracker (sold separately) for group tracking5 and pre-defined messaging.
TRACK YOUR DOG PACK
Wirelessly pair Tread with select Garmin GPS dog trackers (sold separately) to help track and retrieve your sporting dogs in the field. You’ll see markers for each dog within tracking range, overlaid right on the navigator’s map screen.
